API Rigid Welded Centralizers With Set Screw and Stop Collar Casting Centralizer
Negotiable
MOQ: 2000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
PYZS
Model Number:
CC09043
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJN sea port URUMQI SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oilfield Spiral Blade Rigid Centralizer With Set ScrewsNegotiableMOQ: 2000 Sets -
API 10D Specified Positive / Rigid Welded CentralizersNegotiableMOQ: 50 Sets
-
API 10D Hinged Welded Positive Bar CentralizerNegotiableMOQ: 500 Sets
-
API 10D Hinged Welded Positive Bar Centralizer With Set ScrewsNegotiableMOQ: 500 Sets
-
API 4-5/8" Solid Body Straight Blade Rigid CentralizerNegotiableMOQ: 500 Sets
Place of Origin
Henan, China
Brand Name
PYZS
Model Number
CC09043
Type
Stabilizer
Machine Type
Drilling Equipment
Certification
API
Material
Carbon Steel
Processing Type
Casting
Use
Well Drilling
Specifications
Item:oilfield casing centralizerDiameter:3-1/2" to 17-1/2"
Material: carbon steel
Use: well drilling
Certificate: API 10D

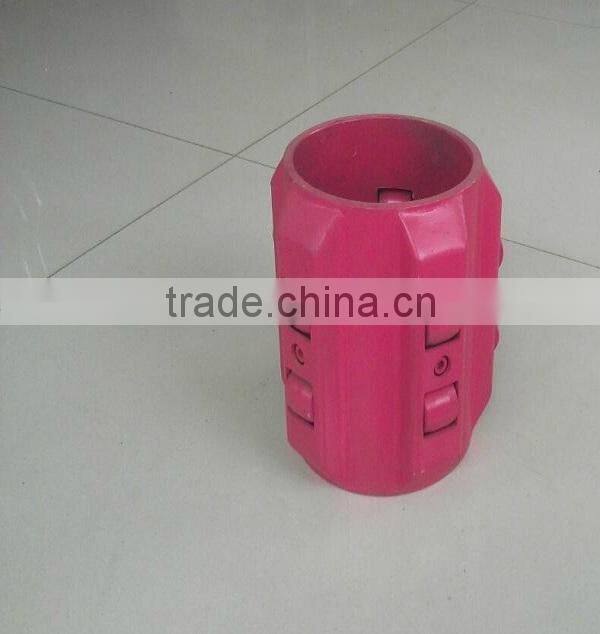

API Rigid Welded Centralizers with set screw and stop collar Casting Centralizer
This slip-on centralizer consists of a slip-on 5" long collar with straight steel bars welded onto the outside and evenly spaced integral set screws for greater holding force; therefore stop collars are not required. Sizes are available for all standard casing sizes. Recommended for use with all standard casing grades.

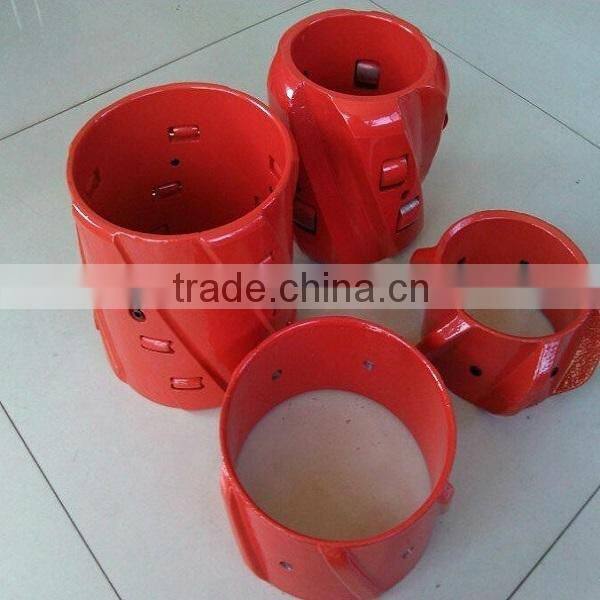

API Rigid Welded Centralizers with set screw and stop collar Casting Centralizer
Non-weld oilfield casing centralizer
| Model (in) | Hooping In-Dia. (mm) | Hooping thickness (mm) | Hooping Height (mm) | Total Length (mm) | Max. Out-Dia. (mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
| 18-5/8*24 | 476±1 | 3-5 | 90-120 | 600±50 | 610±5 | 12 |
| 20*26 | 510±1 | 3-5 | 90-120 | 600±50 | 660±5 | 12 |
Oilfield Weld casing centralizer
| Model (in) | Hooping In-Dia. (mm) | Hooping Thickness (mm) | Hooping Height (mm) | Total Length (mm) | Max. Out-Dia. (mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 5-7 | 50-60 | 650±50 | 225±5 | 5 |
| 6*8-1/2 | 154-158 | 5-7 | 50-60 | 650±50 | 255±5 | 5 |
| 13-3/8*17-1/2 | 342-349 | 8 | 50-60 | 580 | 450±5 | 6 |
| 20*26 | 510-518 | 8 | 50-60 | 650±50 | 670±5 | 10
|
API Rigid Welded Centralizers with set screw and stop collar Casting Centralizer
API Rigid Welded Centralizers with set screw and stop collar Casting Centralizer
