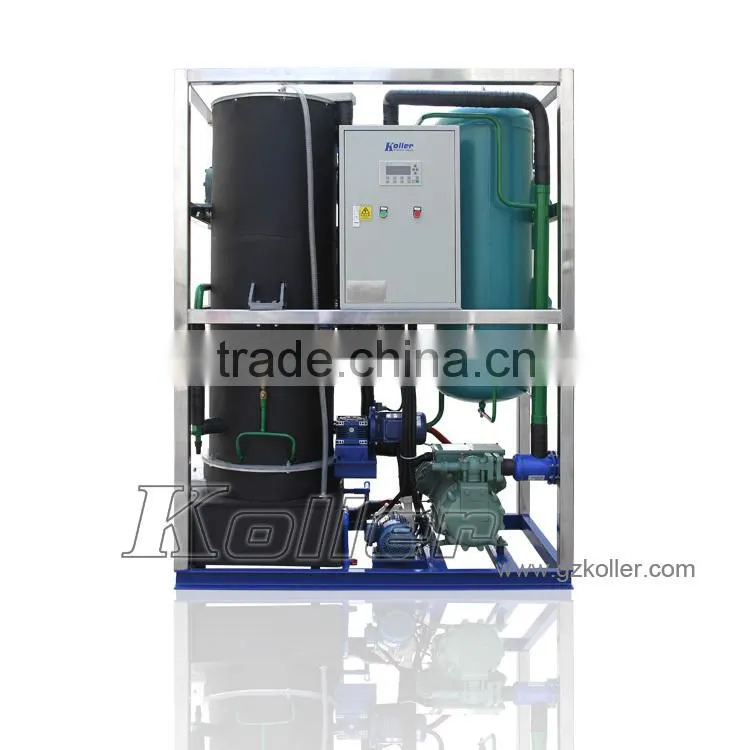

Koller Hot Sale TV50 Tube Ice Maker With High Quality

Specifications

Tube Ice Maker
1.Crystal edible tube ice;
2.SUS304 stainless steel;
3.Siemens PLC system;
4.For drinking, food fresh-keeping

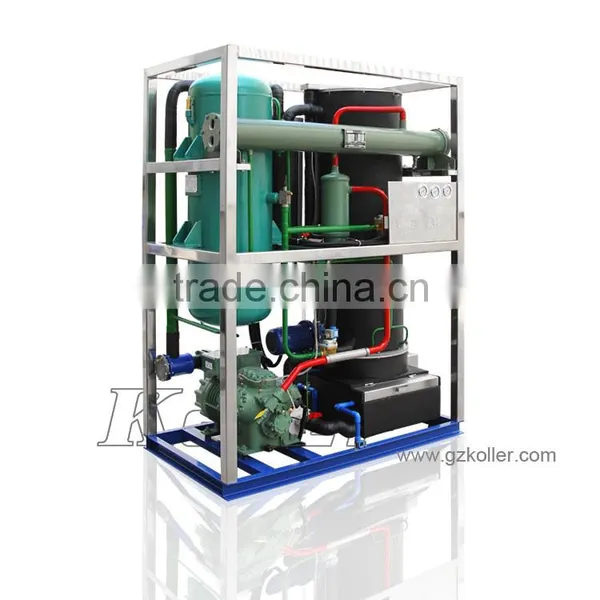

TV50 Tube Ice Machine



Product Features:

1. Harvest ice way: Hot gas defrost

2. Ice tube Size: 20mm, 28mm, 34mm or 40mm in diameter; hollow and transparent ice.



3. Evaporator: tube vessel, its top and bottom part was welded with quality joining.

4. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.





5. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.





6. Install according to the operation manual and CD, Supply failure alarming system, and no requirement of skilled workers, high durability, and minimum maintenance.



7. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.





Main Components for tube ice machine:

Item	Name of Components	Brand Name	Original Country
1	Compressor	BITZER/COPELAND	Germany/US
2	Ice Maker Evaporator Grid	KOLLER	China
3	Water cooled condenser	KOLLER
4	Refrigeration components	DANFOSS/CASTAL	Denmark/Italy
5	PLC Program control	SIEMENS	Germany
6	Electrical components	LG (LS)	South Korea





Technical information:

	TV10	TV20	TV30	TV50	TV100
Ice Capacity (kg/24hours)	1000	2000	3000	5000	10000
Compressor Power (KW)	3	6	9	18.75	37.5
Cutting Motor(KW)	0.75	0.75	0.75	0.75	0.75
Dimension (L*W*H) (mm)	1640*1380*2010	1550*910*2010	1680*950*2450	1790*1080*2450	2100*1830*2500
Cooling way	water cooling	Air cooling	Air/Water cooling	Water cooling	Water cooling



Supply Power Form: 380~420V, 50Hz, 3P or 220~240V, 60Hz, 3P.



Cooling System:Water-cooled system or  Air-cooled system.



Guarantee Period:

During 12 months after selling, maintenance and parts free of charge.



Water-cooled TV50 tube ice machine with water-cooling tower pictures:









Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2). Installing by Koller engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.



(5) Any delay due to customer’s reason, it will be charged from the 8^th day, USD100/day for one person as installation fee. Free of charge for one week.



Tube Ice
