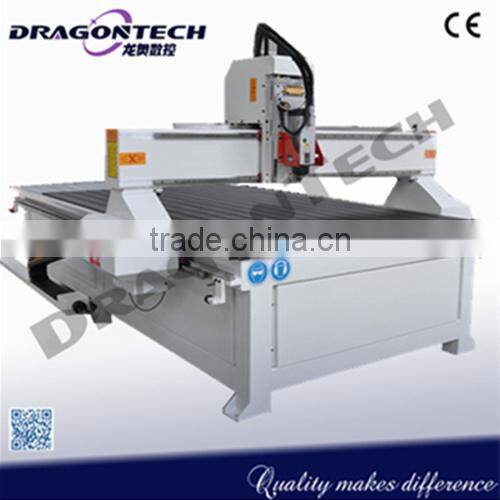

cnc woodworking router machine , 1325 woodworking cnc router , woodwork carving machine
Parameters:
No. | Description | DT1325 |
1 | X,Y,Z working size | 1300*2500*200mm |
2 | Working table | PVC and T-slot vacuum table |
3 | Gantry | Steel gantry |
4 | Lathe structure | Welding steel tube frame(8mm) |
5 | Transmission system | Rack pinion for X/Y, Ball screw for Z |
6 | Working mode | Stepper motor and YAKO driver |
7 | Repositioning accuracy | ±0.03mm |
8 | Max. travelling speed | 32m/min |
9 | Max. working speed | 20m/min |
10 | Spindle and collet | 3kw HSD spindle, ER25 |
11 | Spindle speed | 0-18000RPM |
12 | Working voltage | AC380V/3ph or AC220V/1Ph |
13 | Operating system | DSP |
14 | Command code | G code(*uoo, *nc, *mmg, *plt) |
P.S.

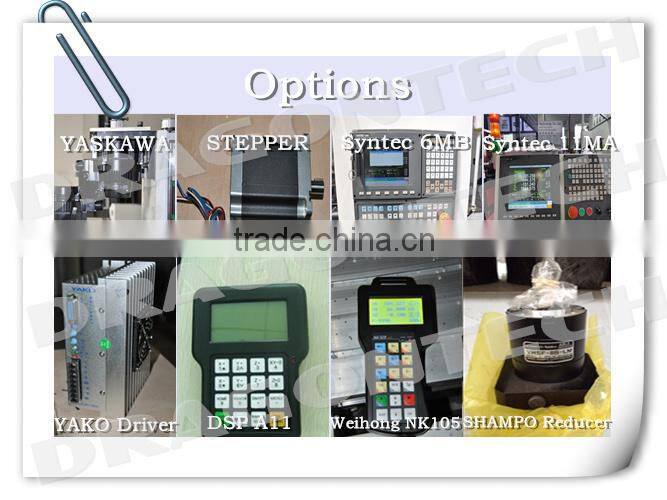

All the parts of machine can do some changes to meet your requirements, such as the motor (Panasonic or YASKAWA), control system(Syntec, DSP or Ncstudio), and the size of the t
able of the machine also can be customized and so on
Following are some samples made by this machine:
We have our own factory:
We pass CE Certification:
We have almost all kinds of machine: 3 axis, 4 axis and auto-feeding cnc routers. If you have your own demands, we also can make for you according to your request.
Contact information:
Skype:ivy.dragontech
Tel:86-183-0644-5018
QQ:1263208647
