Home > Products > DC Resistance Meter > Changzhou Helpass high accuracy standard dc resistance tester/contact resistance tester
Changzhou Helpass high accuracy standard dc resistance tester/contact resistance tester
- 1000 Set / Sets per Month
- Shanghai Hangzhou Ningbo etc
- T/T Credit Card PayPal
-
High precision DC Resistance Tester for winding/conductor resistance test
-
Digital resistance tester for transformer/weld contact resistance range 0.1m ohm -200ohm
-
HPS2513S Digital internal resistance tester with HD LED display
-
Digital ohm meter/mega ohm meter/milli ohm meter for different kinds of resistance
-
HPS2521 low ohm meter resistance tester testing milliohm resistor
-
Ohm Meter testing DC Low Resistance measurement range 1micro ohm~20M ohm
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HELPASS | Model Number: | HPS2515 |
| Display Type: | Digital Only | Measuring Range: | 0.1mΩ -2kΩ | Testing Voltage: | 220V |
| Accuracy Class: | 0.1% | Operating Temperature: | 0°C -40°C | Dimensions: | 225 x 84 x 199 mm |
Product Description

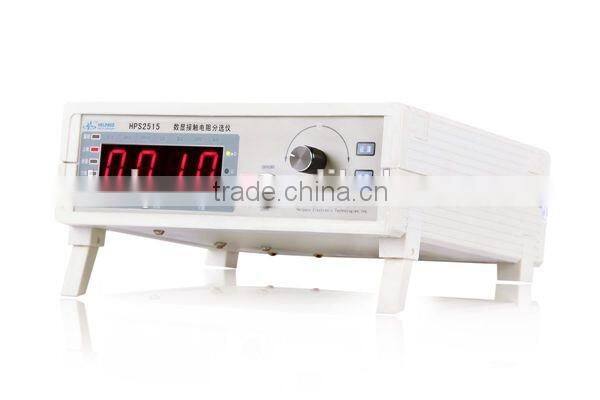

Changzhou Helpass high accuracy standard dc resistance tester/contact resistance tester
♦ Various of switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model | HPS2515 | |
Features | ||
Displayer | 0.8 inch HD LED | |
Display Digits | 4Digits | |
Measurement Function | ||
Basic Accuracy | 0.1% | |
Measurement Range | 0.1mΩ -2000Ω | |
Resolution | 100µΩ | |
Test Current | 100/10/1mA/100µA | |
Range Mode | Auto,Manual | |
Measurement Speed(time/sec) | 20 | |
Trigger mode | Internal,Manual,External | |
Correction | Short Correction | |
Measurement Terminal | Four-wire system(2 detection terminals,2 drive terminals),five terminals | |
Temperature Compensation | Compensation range:0-80°C,Accuracy:0.2°C(option) | |
Sorting and interfaces | ||
Sorting Function | Onlap,Downlap,Qualified sorting, Beep( OFF,IN,HI,LO) | |
Interface | RS-232C/HANDLER | |
General Specification | ||
Working Environment | 0°C -40°C ,≤90%RH | |
Power Requirement | 198V -242V(AC),47.5Hz -63Hz | |
Power Consumption | ≤15VA | |
Standard accessories:
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS25002 Gold plated Kelvin clamp test line
♦ Communication Cable
Optional accessories:
♦ HPS2068 Intelligent counter
♦ USB to RS232 universal serial line (1.8 meters)
♦ Software CD (PC Data Acquisition Software)
