Home > Products > sendust powder > core transformer material
core transformer material
- 20 Ton / Tons per Month
- Shanghai / Shenzhen / Guangzhou
- T/T
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | CDCT | |
| Model Number | C1F-03 | Type | Other, Soft, Magnetic | |
| Composite | Other, Fe-Si-Al | Shape | Other, powder | |
| Application | Industrial Magnet |
Product Description

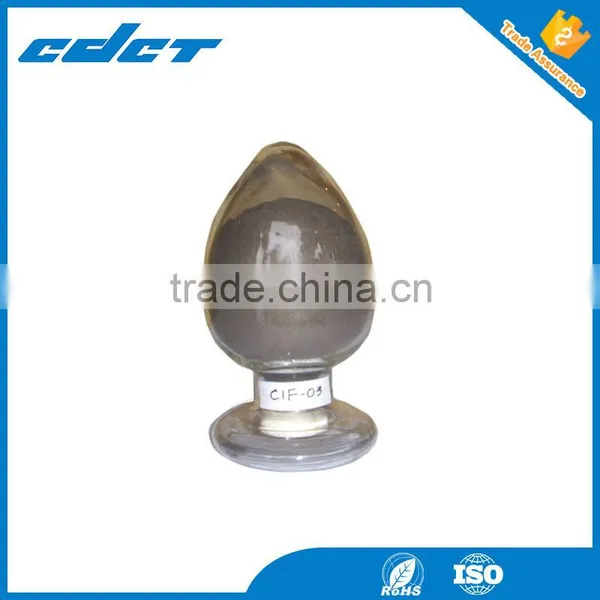

C1F-03 absorbing material sendust soft magnetic powder
1 Chemistry Element
Si | Al | O | C | P | S | Mn | Fe | |
wt% | 9.6 | 5.4 | ≤ 0.2 | 0.08 | 0.03 | 0.002 | 0.08 | Balance |
2 physical parameters
grade | Mesh number | Laser particle size (μm) | |||
D25 | D50 | D75 | D97 | ||
C1F-03 | -150 | 13 | 22 | 33 | 56 |
3 Magnetic Properties
Bs | Tc | Br | Hc | μi |
1.05T | 460°C | 0.3T | 0.02KA/m | 45000 |
4 Usage (1) magnetic powder to be used as wave-absorbing material
(2) frequency conversion inductance core, frequency conversion and transformer core.
(3) PFC choke, high Q quality filter inductance, loaded coils.
(4) Line noise filters, pulse transformer, the energy storage of switch power supply and inductor filtering
5 Features (1) High saturation magnetic induction, high permeability
(2) Excellent DC current bias.
(3) high frequency low loss, low noise.
(4) excellent thermal stability.
6 package 300KG per jumbo bag with wooden case/wood pallet, or small bags with wooden case,also can according to your requirement
