Brief introduction of wrought iron scroll bending machine:
EL-DW16C Program Controlled Pattern Bender is improved from EL-DW16A Electric Pattern Bender.
It based on EL-DW16A to improve the program controlled as PC. The machine is making as automatic design,
program controlled orienting, automatic withdraw material and program controlled brake, that keep the samples
are all the same. Stop shoving ensures keep the machine never crashes. The high working ability can bend 16*16MM square steel,
the speed is 1.5 times than before. It is greatly reducing the labor intensity and improve work efficiency.
Parameters specification:
| EL-DW16C Program Controlled Pattern Bender | ||
| Enclosed Dies | 6 sets bending dies | |
| Working ability (Maximum working specification) | Flat iron | ≤8X50mm |
| Round steel | ≤16mm | |
| Square steel | ≤16X16mm | |
| Basic shaft rotation speed | 11 r/min | |
| Electric motor performance | Power: 2.2 KW voltage: 220V/380V/415V/440V | |
| External dimension | 1000X700X1200mm(LXWXH) | |
| weight | 450kg | |
Wrought iron scroll bending machine features:
1. Die novelty designed, surface smooth, mold our spread a large space, convenient for operation.
2. It is convenient for changing dies.
3. The high working ability can bend square steel 16*16MM.
4. High produce efficiency, it can bend C sample as 20*6MM 450pcs per hour.
5. Comprehensive function, it can bend all kinds and specification of C, P, and S patterns.
The machine fit for processing product pattern of all kinds and sizes,
is equipped with three kinds of holdup wheels: φ50mm φ30mm φ20mm.

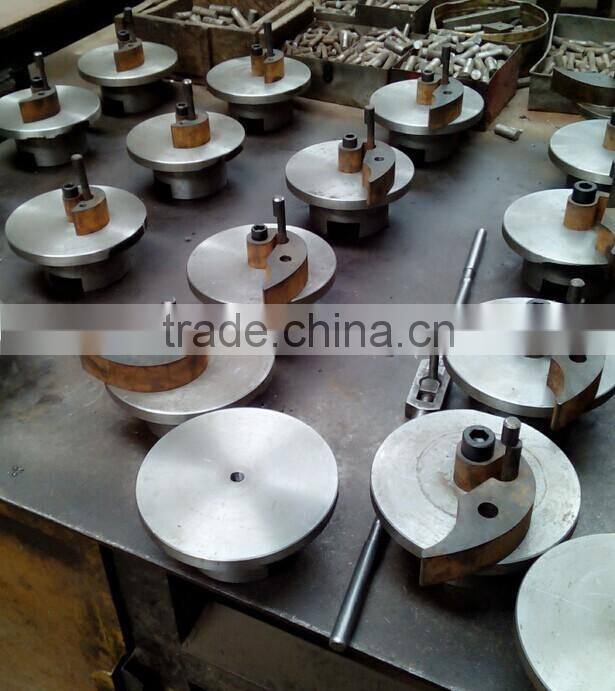

Machine photos:
Package of wrought iron scroll bending machine:
Metal craft produced by wrought iron scroll bending machine:
