cnc router machine for foam wood mold making ,cnc machine for molds making ,,cnc mold making machine

Name: cnc router machine for foam wood mold making ,cnc machine for molds making ,,cnc mold making machine
Brand: Chencan
Availability: InStock

FOB Price

USD $1 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shandong, China	Brand Name:	Chencan	Model Number:	CC-BS2030B
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

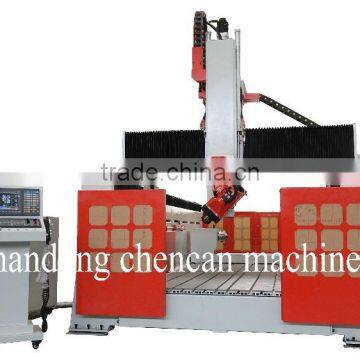

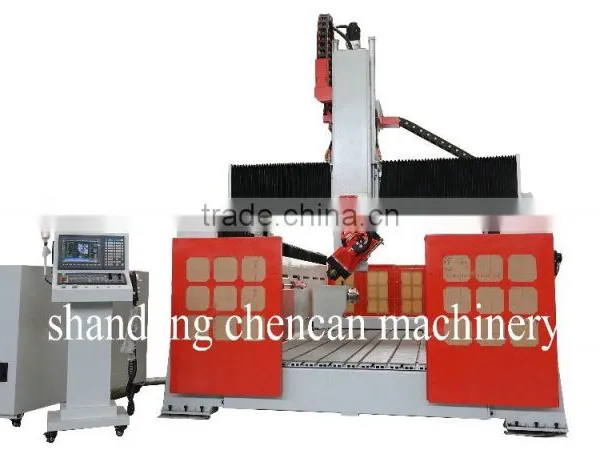

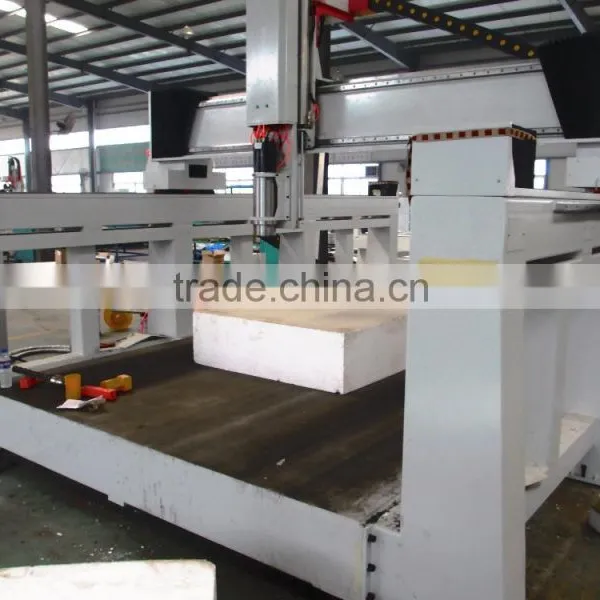

cnc router machine for foam wood mold making

Model: CC-BS2030B

Application

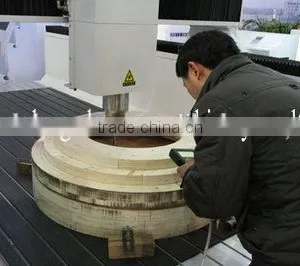

1. Mold industries: sculpture various large non-metallic mold can be particularly suitable for car lost foam pattern, wooden ship model, wooden model aviation and other wood mould.

2. Non-ferrous metals: materials such as aluminum, copper, alloys and other ligh non-ferrous metal processing.

Materials

1. Timber, wood
2. EPS (any kind of foam)
3. Plastics, MDF
4. Aluminum
5. Acrylic and much more

Featuresof the cnc router machine for foam wood mold making

1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed. It has the property of good rigidity and heavy loading.

2. Four-row imported ball bearing, widening linear guide rail, self-lubricating sliding block. When engraving, equal force in all directions, to ensure the accuracy and strength.

3.Three axes of the mould cnc router adopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw, with high precision and longevity.

4. Z axis can be heightened to 1,000 mm, suitable for large-scale material 3D curve working.

5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

6. Has the function of re-carving after break point and power failure.

7. Has the function of forecasting process time.

8. Intelligent processing cross-border protection function can prevent mechanical impact caused by the improper design documents.

9. Diversified control system of the mould cnc router can control processing speed, idling speed and tool falling speed respectively, greatly improved the quality of processed products and processing efficiency.

Technical Parameter :

Description	Parameter
X,Y Working Area	2000×3000mm
Z Working Area	1000mm
Resolution	0.5mm
package Dimension	L×W×H 4700×2280×2150mm
Repositioning Accuracy	0.5mm
Lathe Structure	Seamless welded steel structure, better than cast iron one
X,Y Structure	Rack and pinion transmission, Hiwin square guide rail
Z Structure	Germany-made rolling ball screw, Hiwin square guide rail
Max. Idling Speed	30m/min
Spindle	7.5KW water cooling ATC
Spindle Rotate Speed	0-24000r/min, variable speed
Working Voltage	AC380V/50Hz
Working Mode	Servo motor and diver
Command	G code (HPGL,U00,mmg,plt)
Operating System	taiwan syntec
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water-cooling
Work-holding	By clamp
Net Weight	4000KG
Software	Type 3, ArtCam, Ucancam

Packaging & Shipping

payment and warranty

1. Payment: T/T,L/C; at least 30% deposits, 70% balance before delivery

2. MOQ: 1 set

3. Warranty : 1 year

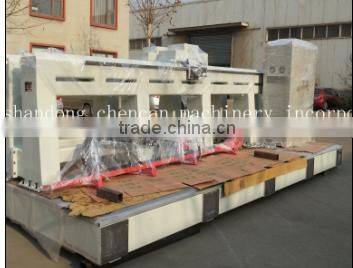

4. Package: wooden case/iron tray ,according to the size of the machine package.

duct time : 30workdays

After-Sales Service

Q1: Installation and Debugging

Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.

Q2: Training

Customers can get free technical training. Mainly training are as follow:

software operation
machine operation and maintenance
Instruction of technical parameters, as well as their setting ranges
solutions for common problems

Q3: Equipment Maintenance

One year free maintenance, lifelong caring

Free technical consultant and software updating

Customer Service responding in 2 hours

Continuous support with software and hardware after free maintenance

Q4: Guarantee

The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
