CHENCAN Four Spindles CNC Router for Wood/PVC/Acrylic/Soft Metal
- 200 Set / Sets per Month
- Qingdao/Tianjin
- T/T Credit Card
-
Jinan CNC Milling Machine 3D CHENCAN CNC Multi Spindle Cutting Machine
-
Smart Design 3 Axis Multi Spindle CNC Router
-
CHENCAN 3 Axis Servo Motor Multi Head CNC Router
-
CC-MS3020K8 cnc gunstock making machine
-
3d cnc router for wood carving with 8 spindles
-
High speed Eight Heads Multifunction woodworking machine
Product Details
| Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
| Brand Name: | CHENCAN | Model Number: | CC-M1325AH4 | Voltage: | 220V/380V/415V |
| Power(W): | varied | Dimension(L*W*H): | 1325, 1530 | Weight: | 1600kg |
| Certification: | CE, ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
| Four Spindles CNC Router |
|---|
|
| Machine Working Video: http://youtu.be/b1Xr4-u-OmE |
| Company promotion video: http://youtu.be/OjzH7NMGbH4 |
| Product Features | |
|---|---|
| 1. | Spindles will work synchronously and the distance between every two spindles can be manually adjusted. |
| 2. | Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
| 3. | The machine adopts gantry movement, suitable for batch processing small work piece. |
| 4. | Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai/AutoCad/PowerMill/UG/Alphacam, etc. |
| 5. | This machine has the function of re-carvingafter break point or power failure and it can estimate the processing time. |
| 6. | Adopting DSP handle controlling system with USB connection,easy to operate. Machine can completely work off-line. |
| 7. | Three axes adopt Taiwan Hiwin linear guide rail with high precision. |
| 8. | Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured. |
| 9. | Manual oil-injection system allows the machine maintenance mush easier. |
| 10. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 11. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| 12. | Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. |
| Main Parts |
|---|
|
|
| Technical Parameters | ||
|---|---|---|
| Description | CC-M1325BH4/AH4 | Optional |
| X Y working area | 1300*2500mm | 1500*3000mm |
| Z working area | 200mm | 300mm |
| Table size | 1440*3040mm | |
| Precision | 0.01mm | |
| Max idling speed | 45m/min | |
Spindle | 3kw water cooled | Italy HSD air cooled |
Working mode | Stepper | Servo |
Operating system | DSP handle | NC Studio |
Fixing | by clamp or air suction | |
| Ball screw | Taiwan ball screw | German brand |
| Inverter | INVT | Delta, Siemens |
| Driver | Yako | Servo drivers |
| Spindle rotating speed | 0-24000r/min | 0-18000r/min |
| Power supply | 380V/50-60HZ | AC220V/50-60Hz |
| Command | G code, HPGL, U00, mmg, plt | |
| Rack and pinion | Helical, module 1.25 | |
| Diameter of cutter | 3.175-12.7mm | |
| Other options | 1.Alignment pop-up pins | |
Note: Such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table) | ||
| Application | |
|---|---|
| Wood processing | Processing of various furniture such as door, window, cabinet, screen and so on |
| Advertisement | Engraving and cutting various labels and number plate. |
| Art craft | Engraving characters of any languages and graphics on gifts and souvenirs. |
| Applicable materials | |
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials. | |
| Processing effect | |
| Engraving, cutting, drilling, milling, enchase, relief, etc. | |
| Samples | |
| |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |

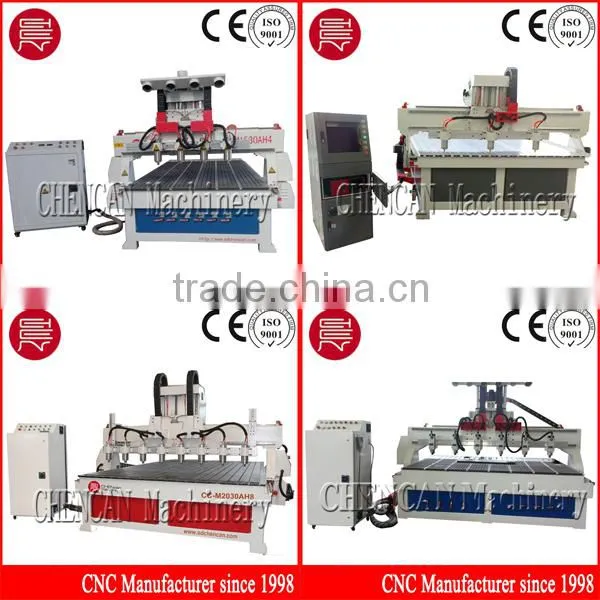

| Related Machines |
|---|
|
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
| Package&Factory |
|---|
|
| Contact information |
|---|
|
Welcome to visit our factory at any time. : ) |
