Home > Products > Ophthalmology Instruments > low price YZ20P6 ophthalmic Operation Microscope

low price YZ20P6 ophthalmic Operation Microscope

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shanghai, China

Brand Name:

LINK YZ20P6 ophthalmic Operation Microscope

Model Number:

YZ20P6 ophthalmic Operation Microscope

Packaging Details

Package: YZ20P6 ophthalmic Operation Microscope
Carton Box

Product Description

Product Description

Pictures

Features

YZ20P5 ophthalmic Operation Microscope

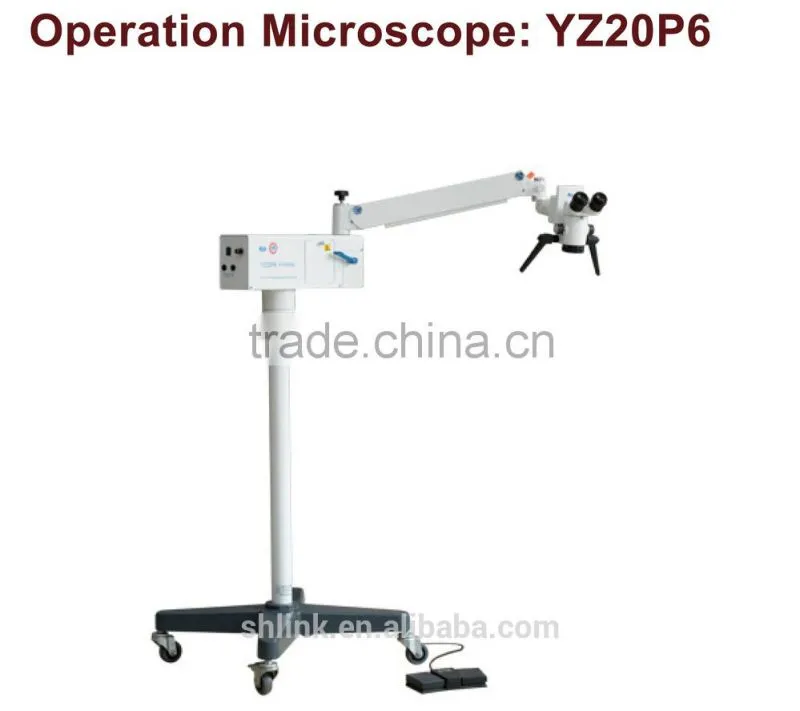

Operation Microscope: YZ20P6

Features:

•Binocular operation microscope designed for single man can meet the requirements of general ophthalmic surgery.

•Germany optical lenses are all multi-coated. Image is clear and view field is even.

•6°+0 coaxial illumination provides the red reflex.

•Reaching radius of microscope arm increases to 1030mm ,which provides surgeon larger operation range.

•Cortical remnants on the posterior capsular can be clearly observed by the 6°+0° coaxial illumination.

•Position screw can protect the arm at any location from moving.

Specifications:

Eyepiece Magnification	12.5×
Objective Focus	f=200
Working Distance	190mm
Magnification for Main Microscope	5.3×,8×,12× steps
Diameter of Field	F37mm,F25mm,F16.7mm
Diopter Adjustment	±7D
Pupil Distance	50mm~80mm
Maximal Resolution	100 LP/mm
Illumination Source	12V/100W,cold reflection medical halogen bulb
Illumination Type	6°+0°cold light coaxial illumination
Coaxial Illumination	≥30000lx
Reaching Radius of Arm	1030mm
Adjustable Vertical Range	±200mm
Fine Focusing Range	30mm
Input Voltage	AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power	120VA
Fuse	AC250V T1.25A ,AC125V T2.5A
Electrical Safety Standard	Executive Standard GB9706.1-2007 Class Ⅰ
Packing Volume	0.24m3,1 carton
Total Weight	51kg

Our Services

About Us

Some Certifications

Our Exhibition

Honored Customers

Best service ,Reasonable Price And Better Quality For You!

Company Profile

Shanghai Link Instruments Co., Ltd.

Shanghai Link Instruments Co.,Ltd. located in Nanxiang Hi-tech Park Innovation Center, it is one of the biggest specialized manufactures engaged in development, production, sales and service in medical field. We possess a high-tech research team, advanced instruments and a welleducated staff team.

Our main products include: Medical Consumables, Hospital Furnitures, Surgical Instruments, Dental Products, Patient Monitors and other processing equipments including Lens Edger etc. The company has passed ISO9001, some of the products have passed CE. Now most of products have been sold to Europe, America, Southeast Asia and Africa, etc.

We focus on devoting innovative achievement in optical field and establishing excellent brand. We provide with not only superior products with fashionable design, but also high-quality service. We start from the details, will be your trustworthy cooperator!
