Thailan hot sale 24kV Metal-oxide Surge Arrester, Medium voltage Lightning Arrester

FOB Price

USD $10 - $50 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REGA
Model Number	YH5W-24

Product Description

Specifications

1.Passed ISO9001 and IEC60099-4 standard.
2.The pass rate is up to 99.9%
3.OEM and sample is available.

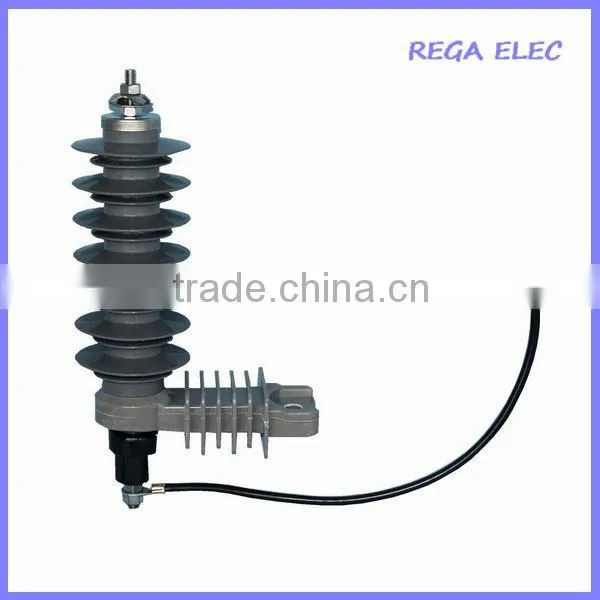

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)

Model:YH5W-24
Specifications:
1.ISO9001 quality management system
2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11
5.Exportation design,polular sale in Iran/Thailand market

Main Technical Parameter
Rated voltage r.m.s: 24kV
Nominal discharge current:5kA
Maximun continous operating voltage(Uc)(kV):20.4kV

Residual voltage at:
1/4μs lightning current impulse residual voltage(kV):76.0
8/20μs lighting current impulse residual voltage(kV):69.1
30/60μs switching current impulse residual voltage(kV): 58.1

Long duration current impulse withstand:
2ms rectangular current(A):100

Operating duty:
4/10u s high current impulse(kA):65

Creepage distance(mm):720mm
Dimension:405*206mm

Any trial order in small quantity is welcomed.

Type				Current with stand		Residual voltage				H×B
				2ms	4/10us	30/60us	8/20us	1/4us		H×B
	Rated voltage	MCOV	Nominal discharge current	2ms rectanglar current impulse withstand	4/10us high current impulse withstand	30/60us switching current impulse	8/20us lightning current impulse	1/4us lightning current impulse	Creepage distance	Size
	kV	kV	kA	A	kA	kVp	kVp	kVp	mm	mm
YH 5W-3	3	2.55	5	100	65	7.2	8.6	9.5	180	210×200
YH 5W-6	6	5.1				14.7	17.3	19.0	270	240×200
YH 5W-9	9	7.65				21.8	25.9	28.5	270	240×200
YH 5W-12	12	10.2				29.1	34.6	38.1	360	270×200
YH 5W-15	15	12.8				36.3	43.2	47.5	450	300×200
YH 5W-18	18	15.3				43.5	51.8	57.0	540	330×200
YH 5W-21	21	17.9				50.7	60.4	66.4	630	375×206
YH 5W-24	24	20.4				58.1	69.1	76.0	720	405×206
YH 5W-27	27	23				65.3	77.7	85.5	810	435×206
YH 5W-30	30	25.5				72.5	86.3	95.0	900	465×206
YH 5W-33	33	28.1				79.8	95.0	104.5	900	465×206
YH 5W-36	36	30.6				87.0	103.6	114.0	990	495×206

Please contact us now if you have any questions or requirements.
