Electric motor,Generator,Capacitor-type surge arrester,voltage Suppressor,Surge Voltage Absorber

FOB Price

USD $3 - $20 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REGA
Model Number	YH2.5WD-13.5/31

Product Description

Specifications

1.ISO9001 quality management system
2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

Distribution, Power Station Type Lightning Arrester Technical Parameters

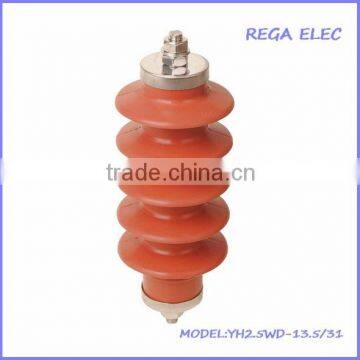

Model: YH2.5WD-13.5/31
Specification:
1)Rated voltage:13.5kV
2)Continuous working voltage:10.5kV
3)DC reference voltageNo less than:2.5KV

Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002

More Technical Parameters as below:

Type	Rated voltage	MCOV	Nominal discharge current	D.C 1mA voltage	30/60us switching current impulse	8/20us lightning current impulse	1/4us lightning current impulse	2ms rectanglar current impulse withstand	4/10us high current impulse withstand	Leaking current
Type	kV	kV	kA	kV	kVp	kVp	kVp	A	kA	uA

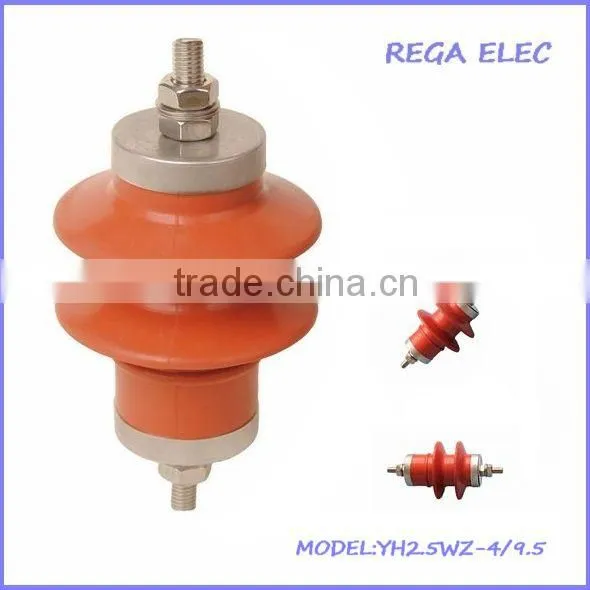

YH2.5WD-4/9.5	4	3.2	2.5	5.7	7.6	9.5	10.7	200	65	15
YH2.5WD-8/18.7	8	6.3	2.5	11.2	15.0	18.7	21.0	200	65	15
YH2.5WD-13.5/31	13.5	10.5	2.5	18.6	25.0	31	34.7	200	65	15
YH5WD-4/9.5	4	3.2	5	5.7	7.6	9.5	10.7	400	100	15
YH5WD-8/18.7	8	6.3	5	11.2	15.0	18.7	21.0	400	100	15
YH5WD-13.5/31	13.5	10.5	5	18.6	25.0	31	34.7	400	100	15

Any trial order in small quantity is welcomed.

Please contact us now if you have any questions or requirements.
