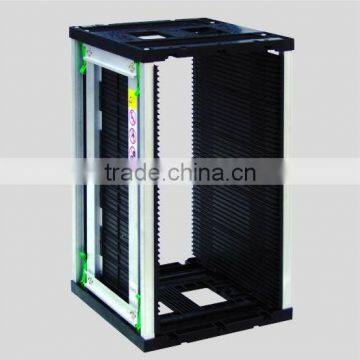

ES15109 normal Temperature PCB Storage antistatic Magazine Rack

ES15109 normal Temperature PCB Storage antistatic Magazine Rack

ESD Magazine Rack

Anti-static ESD Magazine Rack

SMT Anti-static ESD Magazine Rack

 SMT ESD Magazine Rack

  1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
  2) Screw and gear adjustment.
  3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
  4) Surface resistance: 10e4~10e6
  5) Base: Conductive plastic or stainless metal

Description

A: Overall Size: 355*320*363mm. 30pcs of PCB Plates can be stored.
B: Overall Size: 355*320*263mm. 20pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm

Overall Size: 355*315*580mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(80-250)mm
Side guide slot: depth 3.5mm, width 8mm, pitch 10mm
The top and bottom boards are made of plastic. Stationary type.
Adjustable through screws.

Surface resistance: 104~106Ω
Common type and heat-resistance type are available
Overall Size: 355* 320* 563mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 350*(50-250)mm
Side guide slot:  depth 3.5mm, width 5mm, pitch 10mm
The top and bottom boards are made of metal. Stationary type.
Adjustable through screws.(Allowed to be put in ageing chamber.

Surface resistance: 104~106Ω
Resistant to 120℃
Overall Size: 460*400*563mm. 50pcs of PCB Plates can be stored.
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm

Common type and heat-resistance type(120℃ ) are available.
Overall Size: 535*460*570mm. 50pcs of PCB Plates can be stored.
Sizes of PCBs to be accommodated: 535*(50-390)mm
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
