ES14101 glossy/dull blue black green antistatic rubber table mat ESD table mat

ES14101 glossy/dull blue black green antistatic rubber table mat ESD table mat

ESD table mat

high quality esd mat

antistatic mat

ESD dissipative mats are designed to harmlessly drain charges from presonnel, esd boxes,
components and etc. It is lie flat-will not cart and not affected by humidity and superior
resistance to abrasion, chemicals and heat resistant, easy to clean and maintain.
ESD rubber mat or conductive ground mats should be laid out in the workshops and advanced
laboratories for microelectronic industries such as electronic semi-conduct devices, electronic
computers, electronic communication equipment and integrated circuits and etc, to eliminate
damages caused by static electricity. When ESD rubber mat (ground mats) are laid out and
grounded, the working surface will discharge the static electricity of human bodies so that a
near-equipotential can be maintained for ESD tweezers, tools, utensils and instruments,
through which human bodies contact the working table and static sensitive devices(SSD) are
free from broadband interference produced by static discharging such as triboelectrification
etc. In this way, electrostatic protection is realized. ESD rubber mat are mainly made of antistatic(
conductive) and static-dissipative materials, and synthetic rubber. The surface layer is a
0.5mm thick static-dissipative layer. The bottom layer is a 1.5mm conductive layer. Usually
2mm thick double-layer structure is used.
Our antistatic table mat/ floor mat does not contain sulphur, which easily reacts with
other substances to cause decoloring of the products and bring harm to huaman body.

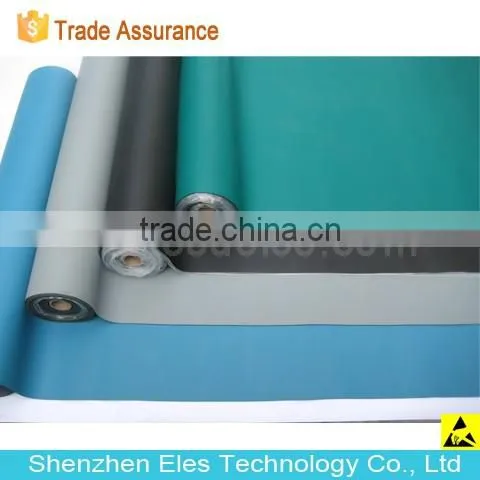

ES14101 ESD mat
1.5mm conductive layer/0.5mm esd disspative layer
Antistatic mat is mainly made with anti-static/
conductive material and dissipating material of
synthetic rubber. Often a 2mm
thickness of a double-layer composite
structure, the surface layer is about 0.5mm
thick static dissipative layer, the bottom of
the conductive layer is approximately
1.5mm thickness.
Customized size is available.

ES14103 ESD floor mat
Anti-shake, anti-fatigue
Inside net structure, resistance in average
Surface resistance: 10^7-10^9Ohm
Bottom resistance: 10^3-10^
Volume resistance: 10^5-10^8Ω
static decay in short time, life more than 2 years
Shape of surface: square, rhomb

ES14102 ESD anti-fatigue floor mat
Material: Top layers: PVC; middle Layer: EPDM foamed;
bottom layers: NBR/PVC
Using advanced production technology, the surface resistance
is 10^3-10^5Ω, permanently prevent static electricity
Composite layer structure of an effective cushion foot
pressure, alleviate fatigue
The surface with yellow warning side, naturally form anti-static
protected areas
Clean and convenient, easy-to-move does not affect the
normal working environment
Non-slip surface, acid and alkali resistant, safe to use
Two 10mm buttons in the mat, grounding cord is available to
connect
Standard size: 0.45mx0.6mx15mm/17mm
0.6mx0.9mx15mm/17mm (2layers/3layers)
Standard width: 0.6m, 0.9m, 1.2m. The max width is 1.2m, and
the max length is 20m
Standard thickness: 15mm, 17mm
Color: black, yellow and black
