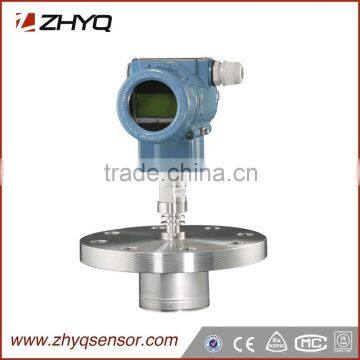

316L Silicone oil filled 4-20mA absolute pressure transmitter (3051A)

Description

The model PT124B-3051A is 316L Smart Silicone oil filled 4-20mA absolute pressure transmitter, it is a modular design, with integrated circuit adapter unit of the pressure transmitter module and a precision AD conversion module and a high intelligent micro processing module . it can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mADC HART signal corresponding to the measured pressure differential. The model PT124B-3051A also can remote setup and monitoring though communication with the model RST375 terminal or RSM100 Modem.

Feature

Adopts global leading high precision silicon transducer technology

Accuracy +/-0.075%

Advanced stability and static pressure performance, error less than +/-0.1%/10MPa

Internal integrated high sensitivity temperature transducer, with perfect thermal drift

All SS316L welding sealed construction with silicon filled

Application

suitable to measure the liquid, gas or stem pressure

suitable to measure the liquid, gas or stem density

Specification

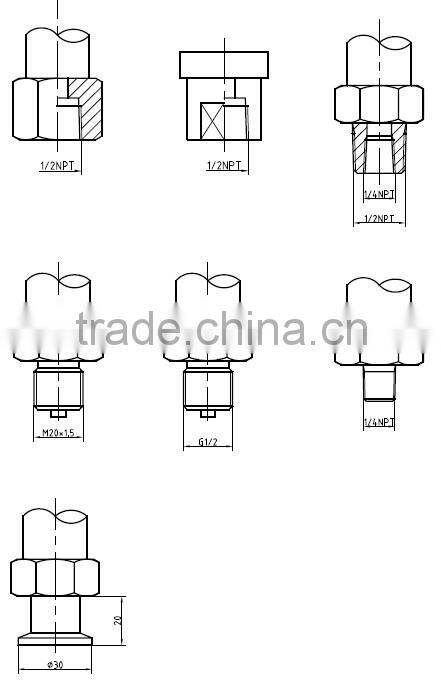

Dimension

Ordering Guide   with * are required, with --- is optional

Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
