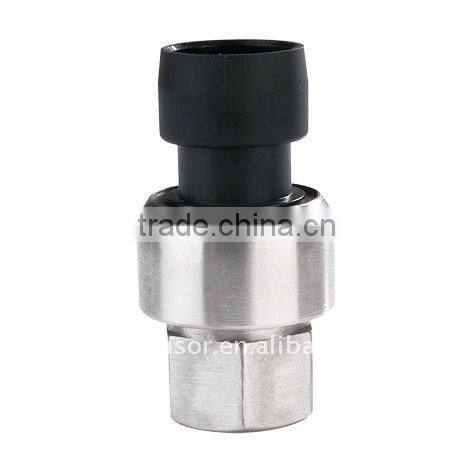

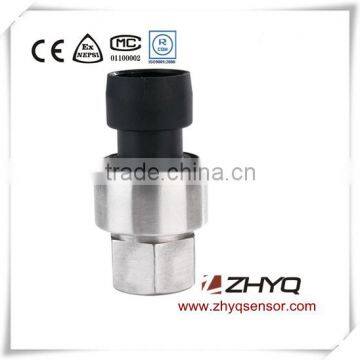

oil pressure sensor for automotive ABS system
- 8000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
axial installation flush diaphragm homogenizer pressure gauge
-
high accuracy diffused silicon hydraulic Pressure transmitter
-
3051 Differential pressure transmitter
-
samll pressure range Differential pressure transmitter
-
N60/N50/N10 Panel-mount digital pressure and temperature indicator
-
N70/N80/N90 Panel-mount digital pressure indicator
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | PT124B-241 |
Product Description
Description
PT124B-241 is oil pressure sensor for automotive ABS system . this pressure transmitter adopts thick film pressure sensor chips and specific integrated circuit (ASIC). It can add over-voltage protection, reverse polarity protection and short circuit protection, EMC protection function; this pressure transmitter is especially suitable for the bad environment, can be used in the conditions of high and low temperature, vibration, thermal shock and mechanical shock, chemical pollution and so on, this automotive pressure transmitter is mainly used for the pressure measurement in auto engine oil and gear box engine oil.
Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
Application
Engine oil
ABS system
Fuel pump
Fuel cylinder high-pressure common rail system
Automotive & air-condition pressure measuring
Specification
Name | ABS system automotive oil pressure sensor |
Model | PT124B-241 |
Range | 0…1500bar |
Accuracy | 0.5%FS |
Linear | 0.02%FS |
Reliability | 0.05%FS |
Output | 0.5-4.5V; 0-5V ; 1-5V; 4-20mA, |
Input Voltage | 5VDC, 24(12-36V)DC |
Operating Temperature | -20°C~120°C |
Compensation Temperature | 0~70°C(Standard compensation) |
Over Pressure | 150%FS |
Case material | 304 SS |
Electric Connection | Packard connector |
Process Connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF (Optional) |
Dimension
Wiring code
Signal Output | 4-20mA (2 Wires) | 0-5V, 0.5-4.5V,1-5V (3 wires) | ||
Wiring Code | 1 | Input (Red) | 1 | Input (Red) |
2 | Output (Black) | 2 | common point (Black) | |
3 | None | 3 | Output (Blue) | |
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
Order guide with * are required, with --- is optional
Model | Range | Output | Process Connection | Electric Connection | Other requirement |
PT124B-241 | * | * | * | * | --- |
Example: PT124B-241-10Bar-4/20mA-G1/8- Packed connector | |||||
Packaging & Shipping
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
