Pressure switch

Specifications

1.Easy to use and install.
2.Security and reliability for the air-tight stainless steel sensor.
3.Use flexibly.
4.VDE , UL



Product Specifications



1.Adopting Eng. thread quick connector (copper flare connection) or brass tube welding fitting structure,flexibly setting,easy to use and no special need for mounting and fixing.



2.Plugging or wiring connection designed to customers’ choice.



3.SPST connection,normal open or normal close structure designed to customers’ choice.



4.Security and reliability by adopting fusion welding stainless steel pressure inductor and full-tight connection.



5.Any pressure value within -14.5~750PSI(-0.1Mpa~5.17Mpa) or extra high pressure switch (more than 800PSI)can be made based on customers’ requirements.



6.Pre-set pressure parameter before delivery allows direct use without resetting on the customers’ site.

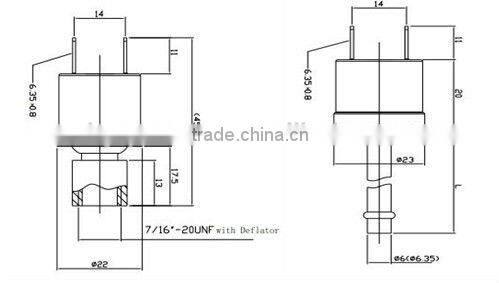

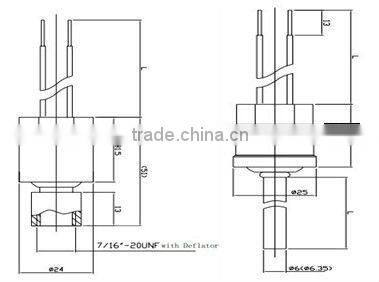

Typical Outline Drawing













Operating Principle





The series of pressure control are used to high,low pressure protection of some refrigeration system like residential,commercial,automobile air conditioner and ice maker etc. It can also be used to hydraulic pressure and steam pressure control system of all kinds of air compressor,equipment or tool and agricultural machine.







Design parameter



Working pressure range:-14.5~750PSI(-0.1Mpa~5.17Mpa)



Bursting pressure:5000PSI



Ambient temperature:-30°C~+80°C



System medium temperature:-50°C~+120°C



Life cycles under the rated electric current:30,000 times,50,000 times and 100,000 times optional



Electric rating:At 24Vac,normal electric capacity:125Vac



At120/240Vac,normal electric capacity:375Vac







 The structure of switches:



SPST Single pole single thrower	Normal open
	Normal close
SPDT Single pole double thrower	Three wire







The methods of connection:



No.	Initial connection	Terminal connection
1	A-two pin plug	Copper pipe (straight)
		Copper pipe (bent)
		Eng.thread outside
		Copper fitting
2	Cooper pipe	Two wire
		Three wire
3	Copper fitting	Two wire
		Three wire











Main technical parameters:



Working pressure range	-14.5~750PSI
Burst pressure	5,000PSI
Ambient temperature	-30°c~80 °c
System medium temperature	-50 °c ~120 °c
Max. current	10A
Life cycles	100,000 times
