Data Center Infrastructure Management DCIM

Name: Data Center Infrastructure Management DCIM
Brand: Richcomm
Availability: InStock

FOB Price

USD $2,500 - $6,000 / Carton

1 Carton(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Richcomm

Model Number:

Sitepro

Product Description

Overview

SitePro is a powerful one-stop power environment system monitor for single server room, it specially designed for middle-small server room, with high integration of hardware and software, support one-stop management for power system like(UPS, precision air conditioning, power distribution, generator, etc), at the same time support one-stop enviornment management for temperature, humidity, smoke, water leakage, door/window contact, infrared detection, when abnormal alarm happend, the monitoring system will give multi alarm notifications like, SMS, sound light, voice dialing, email etc, with an advanced mechanism solution could help to sweep away the hide danger in server room.

Product Function

• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;

• Built-in WEB server to achieve HTTP access;

• Multiple compatibilities of various brands and types of UPS, precision air condition, precision

power distribution cabinet, generator, etc;

• Built-in rechargeable battery which can be continuous running for 8 hours when power outage;

• Support history events and data storage ( expansion by SD card capacity);

• Support to extend 8 channels of dry contact signal input(Such as smoke, water leakage, door

contact, etc);

• Support to extend 24 channels of temperature and humidity detection and 8 general air condition

infrared control;

• Support sound light alarm, SMS, E-mail alarm and SNMP Trap;

• Support multiple users authority management;

• Support DHCP;

• Support scheduled task;

• Support TELNET, WEB page configurations;

• Support network upgrade, USB upgrade.

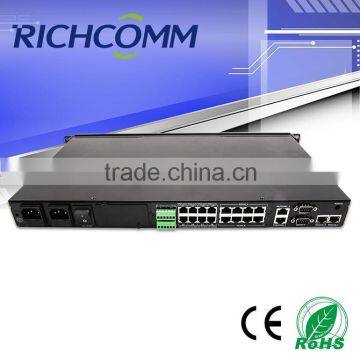

Ports Introduction

Network Diagram

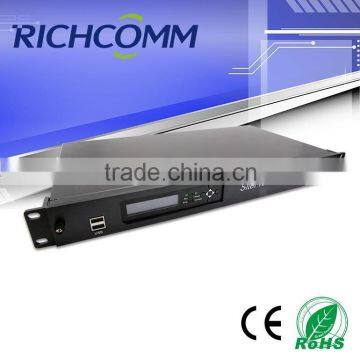

Dimension

1U 19 inch elegant design

Monitoring Interface

Technical Parameters

CPU	32-bit ARM RISC-based 400 MHz high-speed center processor
RAM	64M byte SDRAM
Flash ROM	1G byte NAND Flash
Network Port	High-speed Ethernet network self-adaptive
Device Port	2 RS232 ports
	2 RS232/RS485 composite ports
	8 Switch quantity
	2 RS485 bus
	4 Relay switch output
Environment Port	24 Temperature and humidity
	6 Channels of remote power control modules
	8 Channels of general air condition control module
SNMP MIB	Support RFC1213, RFC1628, PPC MIB
Network Protocol	TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, HTTPS, IPV6, PPP, etc.
LED Indicator	Power, Status, Ready, LAN10/100M Link/Active
Input Power	110V/220V(60HZ/50HZ)
Running Environment	Temperature: 0℃~70℃
	Humidity: 10~80%
Other Configuration	Real-time system clock
Hardware Program Update	Network upgrade
System Security	Provide filtering mechanism based on IP, and system operation, control and management of the user ID and password protection.
Multiple Language	Chinese/English, and also can OEM other languages
Safety Certificate	CE, FCC, ISO9001, ISO14001

SN		Name	M.N	Function	Connection
System Alarm
1.		Telephone Alarm Module	RC77423	Provide telephone alarm notification	USB
2		Sound Light Alarm Sensor	RC77412	Provide sound light notification	Digit out
Environment System
1		Temp&Humid Sensor	RC77015 OLED Display	Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc	RS485-A
1		Temp&Humid Sensor	RC77012 Digital Type		RS485-A
3		Smoke Sensor	RC77150	Detect indoor data center monitor status, every 20 M²-30M²need to install 1pc	DI (RJ11)
4		Infrared Sensor	RC77149	Detect data center intrusion, motion status	DI (RJ11)
5		Door contact	RC77435	.Detect door or window on/off status	DI (RJ11)
6		Switching Value Transmitter	RC77755	Detect on-off status of air condition/ new fan	DI (RJ11)
7.		Sound Light Sensor	RC77412	Give sound light alarm notification when alarm happens	DI (RJ11)
7		Water Leakage Sensor	RC77151 (Non-Locating)	Detect data center water leakage status, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom	DI (RJ11)
8		Water Leakage Sensor	RC91245 (Locating)	Detect data center water leakage status with details location, work with water leakage cable, cable (5/10/15/20/30meter)optional, support length custom	RS485-B
Air Condition System
	AirCon Infrared Component		RC77404	Remotely control air condition on-off,with auto reboot when AC recover	RS485-A
Power Distribution System
	Three Phase Energy Meter		RC77207	Digital display, support to capture the power distribution cabinet of voltage, current, active power, reactive power, etc	RS485-A
	Single Phase Energy Meter		RC77208	Digital display, support to capture the power distribution cabinet of voltage, current, active power, reactive power, etc	RS485-A
	Mains Branch-switch Monitor		RC77305	Support to monitor 8 eletricity switch signal at a same time, output 485 singal to sitepro host, it most works with electricity meter.	RS485-B
APP Monitoring
	APP Tablet		RC93006	Support APP monitoring	Network
