PV epoxy solar cell panel of 3.6w and 4w
- 500 Watt / Watts per Month
- China (Ningbo or Shanghai)
- T/T L/C D/P D/A Credit Card PayPal
- Polycrysalline Protable 20W Home Solar Power System
- 290W Poly Solar Panels For 5kw Off Grid Independent Solar PV System
- 320W Poly crystalline solar panel, PV module, for solar power plant with TUV, IEC, CE, CEC certified
- 160w Poly Silicon PV Solar Module Power Solar Panel
- best quality,price and service, 2.86watts Photovoltaic solar cell
- Solar panels and modules Monocrystalline 60W
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Ganghang | Model Number: | 3.6w solar panel |
Material: | Monocrystalline Silicon | Size: | 214*164*2.5 mm | Number of Cells: | 24(4*6) |
Max. Power: | 3.6W |
Product Description
Specifications
1.Power: 1-300w2.Mono or Poly
3.Warranty: about 25years
4.epoxy solar cell panel: CE,TUV etc.
- Main products: solar cell, solar panel, solar power system below 10kw etc.
- MOQ: 100pcs(sample order and trial order are welcomed)
- Warranty: 5years product warranty,10years 90% and 25years 85%
- OEM order: welcomed
- Certificate: CE,TUV etc.
- Delivery term: about 30days by sea
Parameter of epoxy solar cell panel:
Model | 3.6w solar panel |
Pmax | 3.6W |
power tolerance: | ±3% |
Vmp | 5-6V |
Imp | 0.97A |
Voc | 18.6V |
Isc | 0.85A |
Pcs | 54(6*9) |
Cell Type | 156*156 polycrystalline solar cell panel |
Size | 216*164*2.5 mm |
Net weight | 0.3kg |
STC | 1000W/m2,AM 1.5,25oC |
Warranty | 3 year warranty for products,10 years for 90% power ,25 years for 80% power |
Accessory | 3.2mm thick tempered glass,aluminium frame |
Others | There are drainage holes on the Border components, eliminating the framework of deformation caused by rain or snow accumulated in the framework |

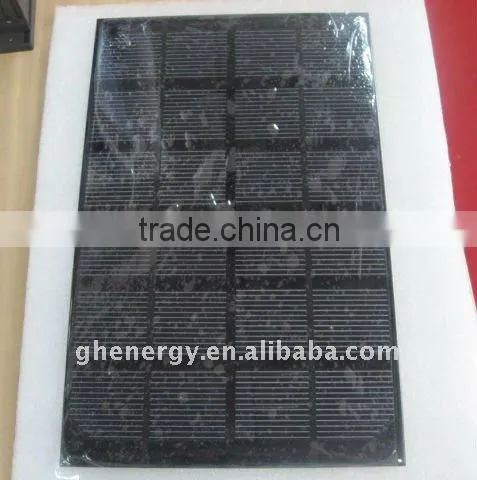

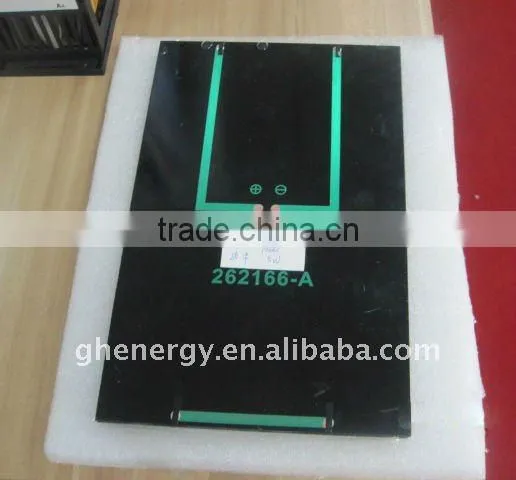

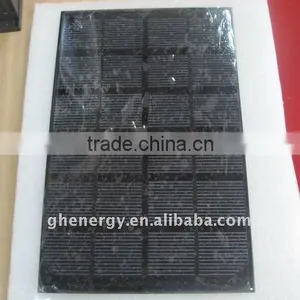

There are some image as follwoing for the epoxy solar cell panel for your inference:
Specification of module | |||||||||||||
Model | TECHNICAL | SIZE(mm) | QTY IN CONTAINER | REMARKS | |||||||||
Wp | Vmp | Imp | Voc | Isc | Length | Width | Thickness | Weight(kg) | 20’ | 40’ | 40HQ | ||
GH005-M08 | 5 | 16.8 | 0.30 | 21.0 | 0.33 | 306 | 218 | 30 | 1.0 |
|
|
| Cutting cell or Completed cell |
GH010-M08 | 10 | 16.8 | 0.60 | 21.0 | 0.66 | 337 | 289 | 30 | 1.5 | 5186 | 10736 | 12550 | |
GH020-M08 | 20 | 16.8 | 1.19 | 21.0 | 0.32 | 636 | 283 | 30 | 2.2 | 2824 | 5846 | 6834 | |
GH040-M08 | 40 | 17.2 | 2.33 | 21.6 | 2.64 | 618 | 539 | 30 | 4.3 | 1626 | 3366 | 3934 | Cutting cell or Completed cell |
GH050-M08 | 50 | 17.2 | 2.9 | 21.6 | 3.30 | 767 | 539 | 35 | 4.8 | 1490 | 3084 | 3608 | |
GH060-M08 | 60 | 17.2 | 3.49 | 21.6 | 3.96 | 732 | 658 | 35 | 3.4 | 1174 | 2430 | 2842 | |
GH080-M08 | 80 | 17.2 | 4.65 | 21.6 | 5.28 | 1196 | 534 | 35 | 8.0 | 860 | 1780 | 2082 | 36pcs 5” cell |
GH100-M08 | 100 | 17.2 | 5.80 | 21.6 | 6.60 | 1200 | 680 | 35 | 13.0 | 466 | 964 | 1128 | 6” Cutting cell |
GH120-M08 | 120 | 17.2 | 6.98 | 21.6 | 7.92 | 1416 | 680 | 35 | 13.0 | 466 | 964 | 1128 | 36pcs 5” cell |
GH180-P06 | 180 | 28.6 | 6.29 | 36.2 | 7.10 |
1590 |
960 |
50 |
18 |
| 56pcs 6” cell | ||
GH200-P06 | 200 | 28.6 | 6.98 | 36.2 | 7.90 | ||||||||
GH240-P06 | 240 | 34.4 | 6.98 | 43.4 | 7.90 | 1880 | 960 | 50 | 22 |
|
|
| 72pcs 6” cell |
GH280-M05 | 280 | 36.1 | 7.78 | 44.1 | 8.80 | 1880 | 960 | 50 | 22 |
|
|
| 72pcs 6” cell cell |
