Specifications
Brand new!!!nice RFE1390, stone laser cutting machine1.USB interface
2.CE
3.High precision
4.Easy operating
Brand new!!!nice RFE1390, stone laser cutting machine
The features:
1.Touched following system designed by Ruofen one of key elements to successfully cut die board. Touched following system can automatically senses the distance from cutting head to die board being cut and then adjust the focal position to keep a good cutting quality.
2.RFG-1325C rofin 200W is equipped with upward and downward exhausted-air blower system. The upward system is located on the side of cutting head. When the cutting head moves, the upward system is following to exhaust the smoking from materials. The combination of upward and downward blower system can totally discharge smoking and fume.
3.In order to protecting the ball screw from contaminated and rusted, ball screws are sealed, which makes sure ball screws and the machine long operating life.
4.The combination of Mitsubishi servo system and ball screw guarantees high precision, high efficiency and running stable.
5.Computer-off controlling system is convenient for you to control machine during working.
The applications:
The series of machine is suitable to art gift,advertisement decoration,toy,electron element,cutting
of template,paper product,stamp and other industries, such as bamboo,paper,plexiglass,acrylic,marble,jade,crystal.Also can cut acrylic sheet,paper and so on
The Parameters :
Model | RFE-1325 |
Laser tube | 80W/100W/130W/150W/180W |
Laser type | CO2 sealed,water cooling,10.7um |
Working area | 1300*2500mm |
Driving system | 3-Phase stepper motor or Servomotor |
Driven system | Both X-aixs and Y-aixs are all ball screws |
Cutting speed | 0-200mm/s |
Laser output | 0-100% software control |
Repeating location | ≤±0.01 |
Supported graphic format | PLT, AI, DST, DXF, BMP |
Supported software | Coreldraw, AutoCAD, Lasercut, Tajima |
Communication connection | USB, PCI (Optional) |
Working voltage | 220V/50Hz, 110V/60Hz |
Total power | <2000w/h |
Samples:

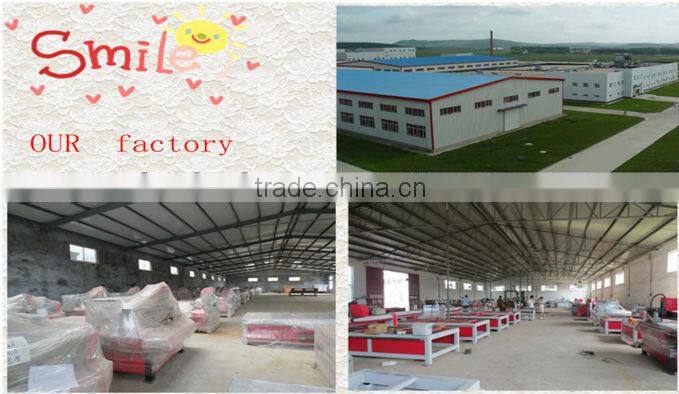

Our factory:
If you have any interest in our machines, pls do not hesitate to contact me!
Looking forward to your inquiry!
Many thanks!
