Detailed Product Description of Plastic bottle blow molding machine:
PET multi-cavity automatic blow molding machine is a high speed linear stretch blow moulding machine which is developed and manufactured by our Company using the state-of-the-art bottle blowing technology. It can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle products.
Features of Plastic bottle blow molding machine:
1.Operation is simple and easy for user because of its high automation as well as intellectual man-machine interface.
2.Compacted mechanical structure with stable heating system and adjustable technical parameters greatly reduces the consumption of water, electricty and air, thus reducing the cost of production.
3.No contamination is found because of the automation in uploading and processing of preform, automation in picking of finished bottle
4.The passing rate of blow bottle is over 99%.
The techincal parameters of Plastic bottle blow molding machine:
Item | HGAS-9C | |
Molding | Clamping Stroke | 120mm |
Stretching Stroke | 240mm | |
Bottom Stroke | 60mm | |
Preform Distance | 76mm | |
Cavities | 9No. | |
Clamping force | 65000kg | |
Container | Max. Container Volume | 1.5ltr |
Neck Diameter Range | 18-38mm | |
Max.Container Diameter | 68mm | |
Max. Container Height | 240mm | |
Theoretical Output | 10000bph | |
Electrical System | Heating Pitch | 50.8mm |
Number of lamp | 144pcs | |
Max. Heating Power | 113kw | |
Heating Power | 56kw | |
Using power | 64kw | |
Total power | 128kw | |
Air System | Operating Pressure | 8-10 kg/ cm2 |
Low Air Consumption | 1500ltr/min | |
Power consuming | 15kw/hr | |
Blowing Pressure | 30 kg/ cm2 | |
High Air Consumption | 5000ltr/min | |
Power consuming | 55kw/hr | |
Chiller Water | Operating Pressure | 3 kg/ cm2 |
Temperature | 5-20°C | |
Flow Rate | 77.1ltr/min | |
Consuming | 23100kcal/hr | |
Cooling Water | Operating Pressure | 3 kg/ cm2 |
Temperature | 18-37°C | |
Flow Rate | 91.4ltr/min | |
Consuming | 4700kcal/hr | |
Machine | Size(L×W×H) | 4200X2000X2500mm |
Weight | 7200kg | |
Machine | Size(L×W×H) | 6400X3300X2500mm |
Weight | 8000kg | |

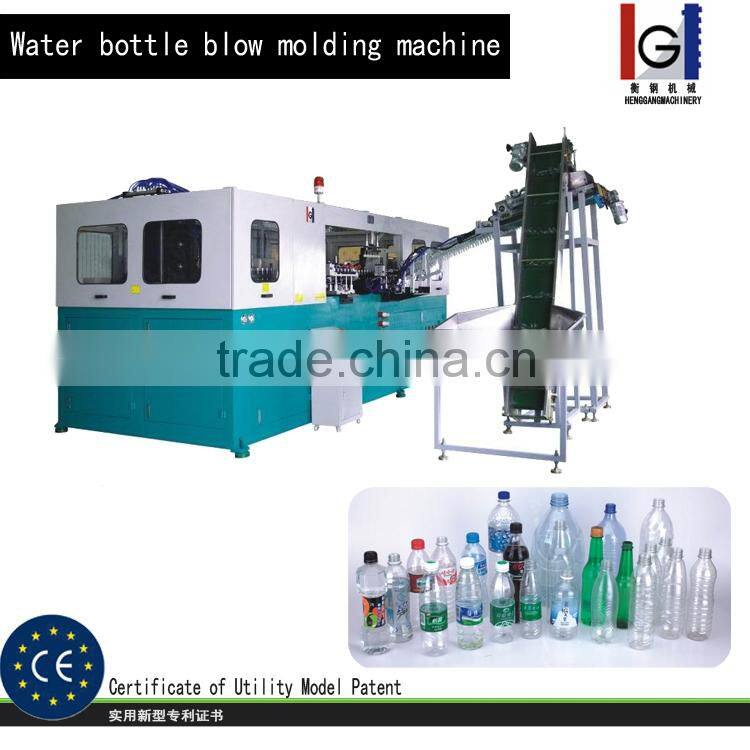

Machine photo of Plastic bottle blow molding machine
Factory overview:
We have two work shops to produce the Plastic bottle blow molding machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Plastic bottle blow molding machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Plastic bottle blow molding machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Plastic bottle blow molding machine
Certifications
Our Plastic bottle blow molding machine has acquired the CE and other domestic patents
