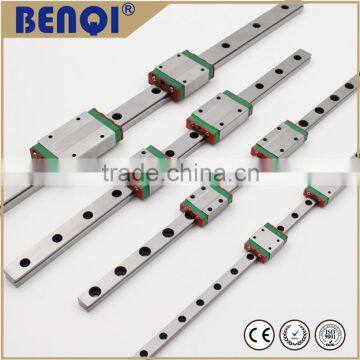

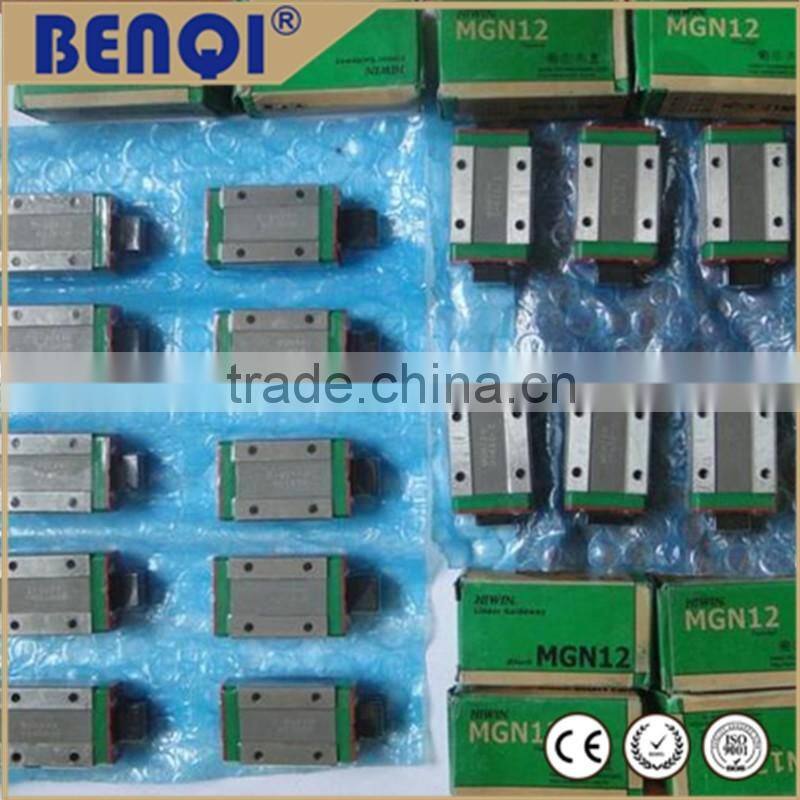

3d Printer 12mm Linear Guide Mgn12 Mgn12c Mgn12h -L 480mm

• Rolling circulation system: Block, rail, end cap and retainer
• Lubrication system: The grease nipple is available for MGW15, grease gun can be used for lubricating.
• Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

• Rolling circulation system: Block, rail, end cap and retainer
• Lubrication system: The grease nipple is available for MGN15, grease gun can be used for lubricanting.
• Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

1. The design of enlarged width has increased the capacity of moment load.

2. Gothic arch contact design has high rigidity characteristic in all directions.

3. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the block are removed from the rail installation.

4. All metallic components are made of stainless steel for anti-corrosion purpose.

1. Tiny and light weight, suitable for miniature equipment.

2. All materials for block and rail are in special grade of stainless steel which including steel ball, ball retainer for anti-corrosion purpose.

3. Gothic arch contact design can sustain the load from all directions and offer high rigidity and high accuracy.

4. Steel balls will be held by miniature retainer to avoid the balls from falling out even when the blocks are removed from the rail installation.

5. Interchangeable types are available in certain precision grades.

Application

MGN/MGW series can be used in many fields, such as semiconductor equipment, PCB assembly equipment, medical, equipment, robotics, measuring equipment, office automation equipment, and other miniature sliding machinery.

MGN and MGW series linear guideway can be classified into non-interchangeable and interchangeable types. The sizes of two types are the same. The interchangeable type is more convenient due to rails can be replaced. However, its precision is less than non-interchangeable type. Because of strict dimensional control, the interchangeable type linear guideway is a smart choice for customers when rails don’t need to be paired for another axis. The model number contains the information of the size, type, accuracy class, preload class, and so on.
