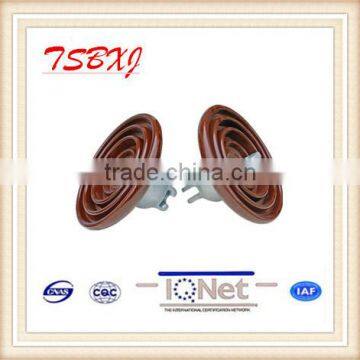

U70BL AC disc suspension porcelain Insulator(Normal Type)
USD $4.35 - $4.83
/ Piece
5760 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen Shanghai Ningbo Qingdao Fuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ | |
| Model Number | U70BL | Type | Insulator | |
| Material | Porcelain | Application | High Voltage | |
| Rated Voltage | 11kV | Tensile Strength | 70kN |
Product Description
Product Description in Detail
Disc insulator,suspension insulator, U70BL series
size:D254*H146*L295/320mm
Specification
| Type | U70BL | ||||
| Main Dimensions(mm) | D | 254 | |||
| H | 146 | ||||
| Creepage Distance | 295/320 | ||||
| Power-frequency Puncture Voltage(kV) | 110 | ||||
| Average flashover voltage | Power-frequency | Dry(kV) | 80 | ||
| Wet(kV) | 50 | ||||
| Critical-Impulse wave | Positive(kV) | 125 | |||
| Negative(kV) | 130 | ||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | 10 | |||
| Maximum RIV at 1000kHz(uV) | 50 | ||||
| Electro mechanical Failing Load(kN) | 67 | ||||
| Mechanical Impact Strength(n.m) | 5.5 | ||||
| Unit Weight(kg) | 4.6/5.3 | ||||
Features
1).Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).The normal type disc suspension porcelain insulators include standard type and large creepage distance type insulators,which are widely used in clean areas and light pollution areas.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) | pcs /crate | pcs /20ft container | total crate (crate) | size of pallet (mm) | total pallet(pallet) | G.W /case | N.W /case | G.W /20'FCL | N.W /20'FCL | |
| U70BL | 470*450*270 | 6 | 2880 | 480 | A:940*900*80 B:940*1350*80 | A:12 B:12 | 33 | 27.6 | 17819 | 15840 | |
Factory show
welcome for your inquiry!
