CM10N Coating Thickness Gauge Meter Tester 0-2000um
Product Description

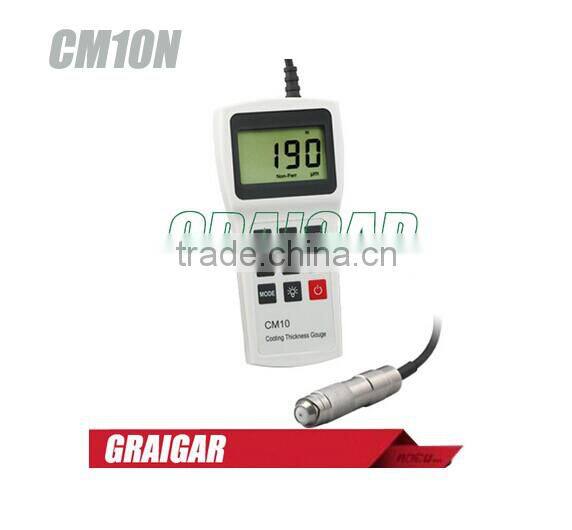

CM10N Coating Thickness Gauge Meter Tester 0-2000um
Measuring Principle
|
| Eddy Current Method (NFe): |
| measuring the thickness of non-conductive |
| coatings on copper, aluminum, stainless steel |
| painting, varieties of anti-corrosion coating |
| and other non-ferromagnetic substrates, e.g., |
| powder spraying, plastic, rubber, synthetic |
| material, oxide film and phosphate film, etc. |
Measuring Principle:Eddy Current Method
Measuring Range (um) :0~2000
Low Range Sensitivity (um) : 0.1
Tolerance:(um) ±(2%H+2)
Testing Condition:(mm): 3
Min. Measuring Suface(mm):5
min.Substrate Thickness(mm): 0.3
Display:Hight contrast Segment Liquid(LED backlight)
Statitics:N,MAX,MIN,MEAN,STD.DEV
Calibration:1-point Calibration,2-point Calibration
Auto Power-off:Auto off after 3 minutes of inactivity
Power:2 1.5V AA batteries,low-voltage indication function
Weight:200g
Size:149mm×73mm×32mm (H×W×D)
