ALK-88A Fully Automatic Optical Fiber Fusion Splicer 7 Seconds Fast Welding
US$ 2,200 - 2,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRAIGAR
Model Number:
ALK-88a
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra OpticaUS$ 1,700 - 2,100MOQ: 1 Piece -
Fiber Optical Multimeter -70~+3dBm Handheld Fiber Optical Power Meter + Fiber Optical Light Source 1310/1550nm GRF-03A/BNegotiableMOQ: 1 Piece
-
Handheld Fiber Optic Power Meter Tester GRF-02NegotiableMOQ: 1 Piece
-
Handheld Mini Fiber Optical Power Meter GRF-1NegotiableMOQ: 1 Piece
-
Automatic Intelligent Optical Fiber Fusion Splicer / Fibra Optica Splicer/fiber Splicer GRT-06US$ 1,000 - 2,000MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
GRAIGAR
Model Number
ALK-88a
ALK-88A Fully automatic Optical fiber fusion splicer 7 seconds fast welding
Introduction:
Eloik ALK-88A Fusion Splicer Fiber Optic Equipment is a New Fusion splicing machine and have our own intellectual property right of fiber adjustment technology. It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed

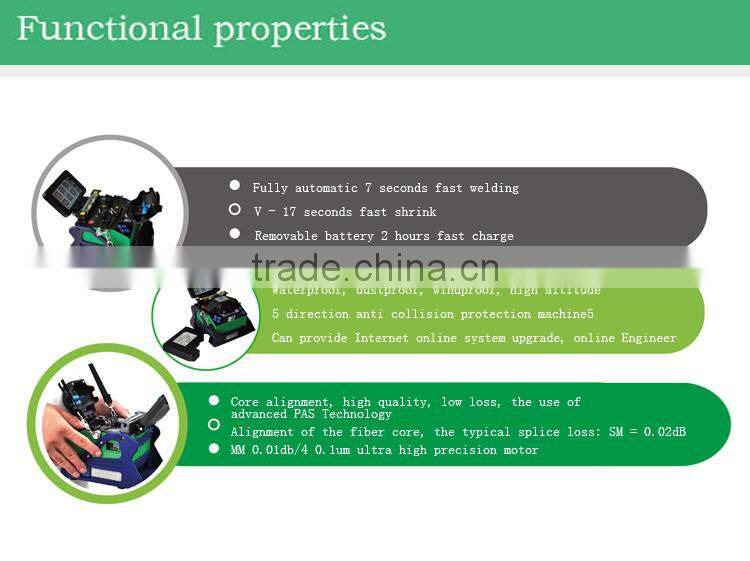

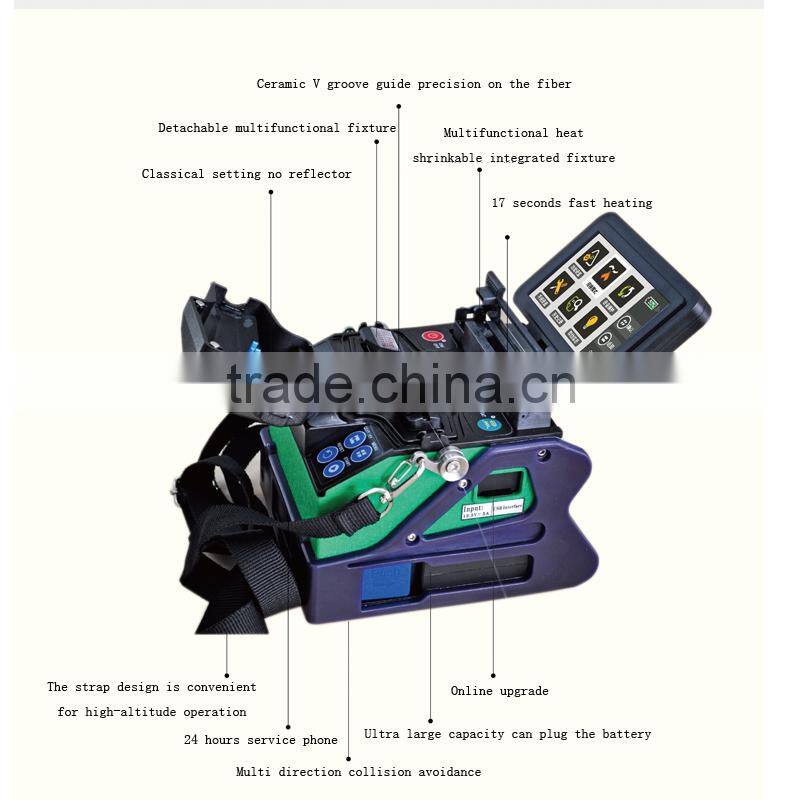

Features:
1. Hardness:The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
2. Fast: 7s fast splicing , 17s fast heating, support continuous heating , average efficiency improve 2-3times.
3. Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
4. Convenience: convenient for maintenance
5. Six languages: Chinese, English, Russian, Portuguese, French, Spanish
Specification:
| Applicable fiber Type | SM, MM, DS, NZDS |
| Applicable fiber Count | Single |
| Applicable fiber diameter | Cladding diameter of 80-150μm, coating diameter 100~1000μm |
| Splice Mode | Stored 40 groups, 80 groups of user-defined |
| Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return Loss | More than 60dB |
| Connecting time | 9sec (typical time)/7S (Fast Mode) |
| Splice loss evaluation | Have |
| Tensile test | 2N |
| Screen | 4.3inch color LCD ,Support Chinese, English, Russian, Portuguese, French, Spanish |
| Optical magnification | X/Y:115 times, X,or Y: 230 times |
| Power Supply | 11.1V lithium battery, 13.5V/10A power adapter |
| Battery | Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 2h, can be resued 500 times |
| Maximum storage | 5000 set of the latest record storage |
| Data interface | USB2.0 |
| Operating environment | Altitude 0~5000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, the maximum wind speed 15 m/s |
| Storage Conditions | 0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) temperature -10 oC ~30 oC(battery) |
| Weight | 1.54kgs (without battery), 1.93kgs(including battery) |
| Corrosion resistance | Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion |
| Size | 166D X 142W X 139H (mm) |
| Applicable fiber diameter | 0.25mm/0.9mm/2.0mm/2.4mm/3.0mm/Indoor Cable |
| Heating Time | 17S(user-defined) |
| Heating Temperature | 180 oC~250 oC(user-defined) |
Package:
| Standard Package | |||
| No. | Description | Quantity | Remark |
| 1 | Optical fiber fusion splicer | 1 | |
| 2 | Fiber Cleaver | 1 | |
| 3 | Carrying Bag | 1 | |
| 4 | Three Hole Fiber Optic Miller Stripper | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | Drop Cable Stripper | 1 | |
| 7 | Rubber Head Tweezers | 1 | |
| 8 | Alcohol Bottle | 1 | |
| 9 | Dust Blowing Ball with Brush | 1 | |
| 10 | Instruction Manual | 1 | |
| 11 | Seperate Fiber Holder | 1 | |
| 12 | Multifunction Fiber Holder | 1 | |
| 13 | Electrodes | 1 | |
| 14 | Cooling Tray | 1 | |
| 15 | Battery | 1 | |
