Help CenterCP3030 High Frequency Current Probe (DC/AC) (150A/15MHz Double Range Selection)
Related Products
-
CP3120 AC/DC 30A/70MHz High Frequency Current Probe Compatible With Teck Series Current ProbeUS$ 1,150 - 1,500MOQ: 1 Piece -
CP8300A Perfectly Compatible With the Current Probe Tektronix 300A OscilloscopeUS$ 2,800 - 3,200MOQ: 1 Piece
-
High Frequency DC/AC Oscilloscope Current Probe 12MHz 150Arms Peak 300A Double Ranges 10X 100X CP8150AUS$ 1,900 - 2,300MOQ: 1 Piece
-
High Frequency DC/AC Oscilloscope Current Probe 40MHz 30Arms Peak 50A Double Ranges 1X 10X CP8030AUS$ 1,250 - 1,400MOQ: 1 Piece
-
P5102 ,P5103 Oscilloscope Probe 10KV 100X 20MHz High Voltage ProbeUS$ 120 - 150MOQ: 5 Pieces
The minimum current measurement 5mA
Noise ≤500uARMS
Coupling mode AC,DC
Low frequency bandwidth of the exchange coupling <7Hz
The maximum insulation line voltage 600V CATII
The current probe amplifiers of CPA3000 and CPA4000 are used with current probes of CP3000 and 4000 in our company, so that the measurement of current is enabled to be more convenient and accurate. Additionally, the current probe amplifiers are completely compatible with Tektronix current probes of TCP300/TCP400 series, and applicability of the product is well expanded. The applicable current probes are as below:
CP3120(30A/70MHz is suitable for CPA3000 )
CP3050(50A/50MHz is suitable for CPA3000 )
CP3030(150A/15MHz is suitable for CPA3000 )
CP4040(500A/5MHz is suitable for CPA4000 )
Technical specifications of current probe (typical)
Parameter | Model | ||
CP3030 | |||
Measuring range | 5A/V 50A/V | ||
Minimum measuring current | 5mA | ||
Noise (Throttle bandwidth 20MHz) | ≤500uARMS | ||
Coupling mode | AC,DC | ||
Low-frequency bandwidth of AC coupling (-3dB)(-3dB) | <7Hz | ||
Maximum current value (decrease with frequency increase, see figures 14-17)
| Measuring range | 50A/V | 5A/V |
DC continuity | 150A | 25A | |
RMS (Sine wave) | 150A | 17.7A | |
RMS (Sine wave) | 500A | 500A | |
Maximum insulation line voltage | 600V CATII 300V CATIII | ||
Insertion impedance | The reference map20 | ||

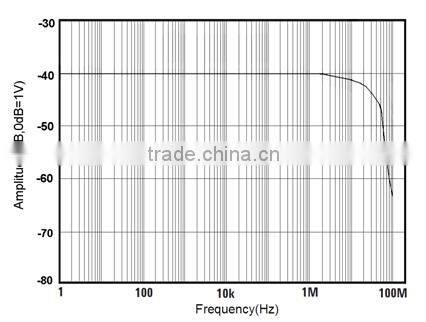

Figure 12 CP3030 amplitude frequency curve

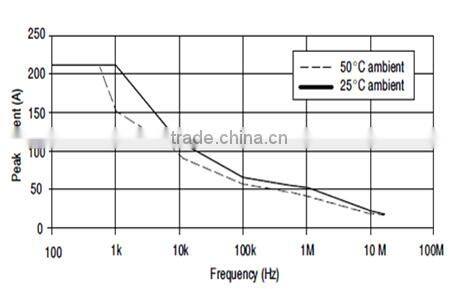

Figure 16 CP3030 peak current VS frequency curve
Figure 20 Insertion loss VS frequency curve of CP3030
