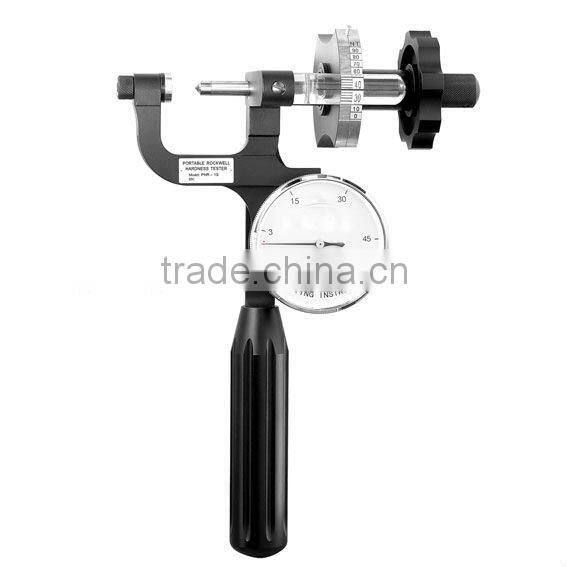

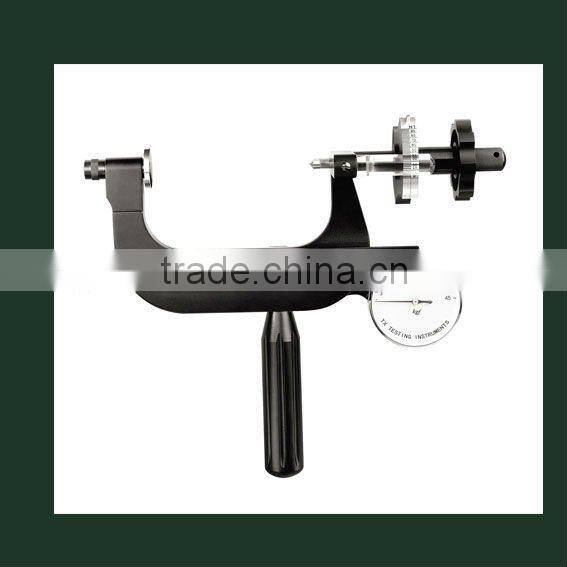

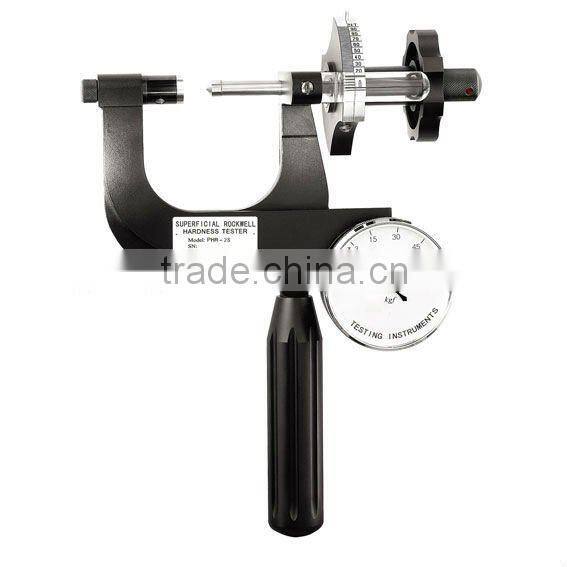

Help CenterPortable Brinell Hardness Tester,Chain Clamp Portable Rockwell Hardness Tester,Portable Superficial Rockwell Hardness Tester
Related Products
-
Portable Brinell Hardness Tester,Chain Clamp Portable Rockwell Hardness Tester,Portable Superficial Rockwell Hardness TesterNegotiableMOQ: 1 Piece -
Thin Wall Pipe Superficial Rockwell Hardness Tester,PHR-1STNegotiableMOQ: 1 Piece
-
PHBR-100X Digital Rockwell Hardness Tester,Magnetic Type Brinell & Rockwell Hardness Tester,metal Hardness Tester,hardness GaugeNegotiableMOQ: 1 Piece
-
Regular Portable Brinell & Rockwell Hardness Tester,PHBR-2NegotiableMOQ: 1 Piece
-
Portable Brinell & Rockwell Hardness Tester,Brinell & Rockwell Hardness Tester,metal Hardness Tester,digtal Hardness GaugeNegotiableMOQ: 1 Piece
Specifications
Magnetic Type Rockwell Hardness Tester,rockwell hardness tester,Webster Hardness Tester for Aluminum AlloyPortable Brinell Hardness Tester
Introduction
Tests the superficial hardness of metals.
The test principle and accuracy comply to standard ISO6508.
With the bench stand it can be used on the desk as well as on
site.
Tests the hardness of thin plate, slim pipe, thin shaft, small ball
and small stampings, workpieces with small supporting surface as
well as parts requiring small indentation, replacing Vickers
hardness tester.
It is used for finished workpiece NDT test directly.The small
indentation is non-destructive to most workpieces.
Traceable standard hardness block.
Indenter inspected with standard Rockwell hardness tester.
Test force calibrated with load cells directly traceable to national
secondary benchmark
Main Technical Parameters
Indenter: 120°diamond cone
1.588mm carbide ball
ISO6508
scales.
copper, aluminium, zinc, lead, tin,
carburized steel, nitrided steel etc.
Application
Tests thin shaft >2mm with V anvil.
Tests small ball >2.5mm with ball testing anvil.
Tests small and irregular stampings with small supporting surface
using slim raised spot anvil.
Tests tin plate and cold-rolled sheet using PHR-1S and diamond
raised spot anvil.
Tests carburized layer or nitrided layer on large workpieces using
PHR-100S.

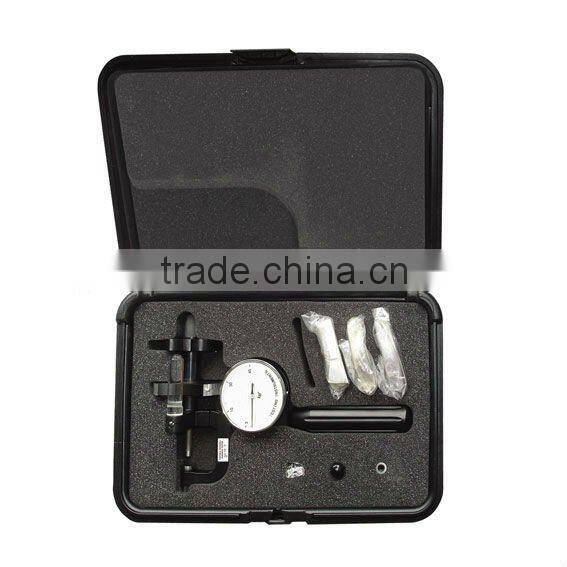

Standard Package
Tester
Bench stand
120°diamond cone indenter
1.588mm carbide ball indenter
3 superficial Rockwell test blocks
V anvil (small)
Extension (small)
Base for standard test block (magnetic)
Carrying case
Optional Accessories
120°diamond cone indenter
1.588mm, 3.175mm carbide ball indenter
1.588mm, 6.35mm, 12.7mm steel ball indenter
Standard test blocks (HR15N, HR30N,HR45N, HR15T, HR30T,
HR45T)
Raised spot anvil
Slim raised spot anvil (flat top: 1.5mm, 2.5mm, 3.5mm)
Diamond raised spot anvil
Ball testing anvil
Spare magnifier
Model | Specimen/Opening Size | Net Weight | Gross Weight | Package Dimensions (mm×mm×mm) | |||
Tester | Bench stand | Tester | Bench stand | Tester | Bench stand | ||
PHR-1S | 25×25 | 0.8 | 1.5 | 2.6 | 1.8 | 330×255×150 | 215×148×232 |
PHR-2S | 50×50 | 1.1 | 1.5 | 3.6 | 1.8 | 390×280×160 | |
PHR-4-2S | 100×50 | 1.5 | 4.5 | 5.0 | 4.9 | 510×375×177 | |
