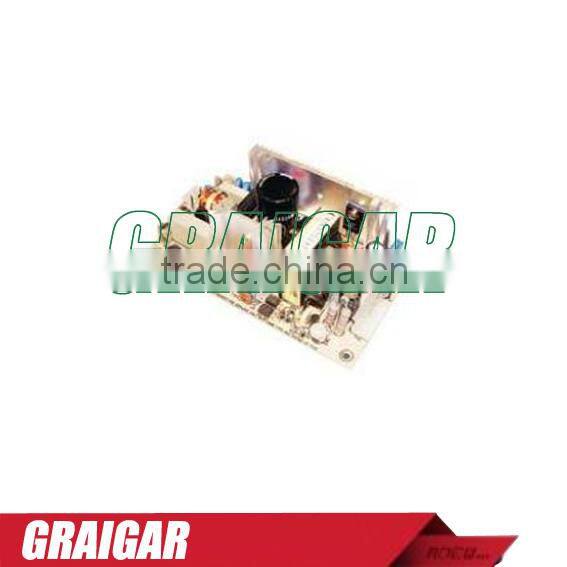

65W Single Output Open Frame Power Supply PS-65 Series
MODEL NO.: PS-65
Features:
- Universal AC input/Full range
- Low leakage current<0.5mA
- Protections: Short circuit/Over load/Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
SPECIFICATION:
| MODEL | PS-65-3.3 | PS-65-5 | PS-65-7.5 | PS-65-12 | PS-65-13.5 | PS-65-15 | PS-65-24 | PS-65-27 | PS-65-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 12A | 12A | 8A | 5.2A | 4.7A | 4.2A | 2.7A | 2.4A | 1.35A | |
| CURRENT RANGE | 0 ~ 15.2A | 0 ~ 13.8A | 0 ~ 9.6A | 0 ~ 6A | 0 ~ 5.4A | 0 ~ 4.8A | 0 ~ 3A | 0 ~ 2.7A | 0 ~ 1.5A | |
| RATED POWER | 39.6W | 60W | 60W | 62.4W | 63.5W | 63W | 64.8W | 64.8W | 64.8W | |
| OUTPUT POWER (max.) | Rated output power for convection;72W (+3.3V:35W) with 18 CFM min.Forced air | |||||||||
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 3.14 ~ 3.63V | 4.75 ~ 5.5V | 7.13 ~ 8.25V | 11.4 ~ 13.2V | 12.8 ~ 14.9V | 14.25 ~ 16.5V | 22.8 ~ 26.4V | 25.65 ~ 29.7V | 45.6 ~ 52.8V | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD TIME | 800ms, 20ms,60ms at full load | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~440Hz | |||||||||
| EFFICIENCY (Typ.) | 69% | 76% | 79% | 79% | 79% | 79% | 80% | 80% | 80% | |
| AC CURRENT | 1.2A/115VAC 0.72A/230VAC | |||||||||
| INRUSH CURRENT (max.) | COLD START 20A/115VAC 40A/230VAC | |||||||||
| LEAKAGE CURRENT | <0.5mA/240VAC | |||||||||
| PROTECTION | OVERLOAD | 73 ~ 105W (3.3V: 51 ~ 75 W)(5V: 70 ~ 105) rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 3.8 ~ 4.46V | 5.75 ~ 6.75V | 8.63 ~ 10.1V | 13.8 ~ 16.2V | 15.5 ~ 18.2V | 17.25~ 20.25V | 27.6 ~ 32.4V | 31 ~ 36.45V | 55.2 ~ 64.8V | |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60ºC (Refer to output load derating curve) | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.04%/ºC (0 ~ 50ºC) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC(Note.4) | SAFETY STANDARDS | Design refer to UL60950-1,TUV EN60950-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A | |||||||||
| OTHERS | MTBF | 300.7Khrs min. MIL-HDBK-217F(25ºC) | ||||||||
| DIMENSION | 127*76*42mm (L*W*H) | |||||||||
| PACKING | 0.21Kg;54pcs/14.2Kg/1.35CUFT | |||||||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. | |||||||||
| 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
| 3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||||||||
| 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||
| 5.Mounting holes M1 and M2 should be grounded for EMI purposes. | ||||||||||
