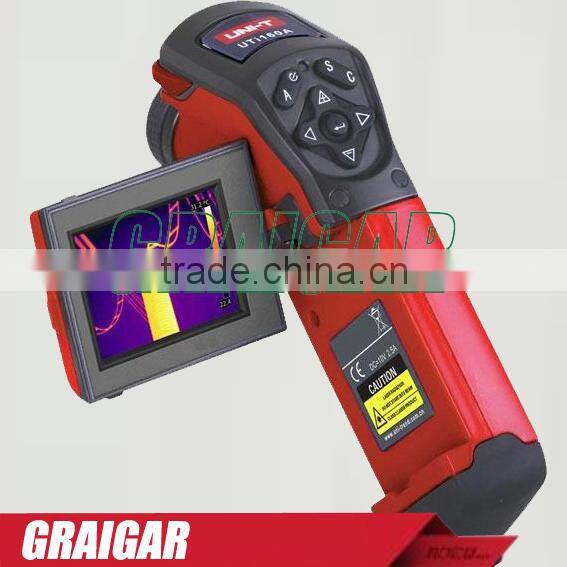

Handheld Infrared Thermal Imager Infrared Camera UTI160A Visual IR Thermal Camera

Shenzhen Graigar Technology Co., Ltd.
Handheld Infrared Thermal Imager Infrared Camera UTI160A Visual IR Thermal Camera thumbnail-1
Handheld Infrared Thermal Imager Infrared Camera UTI160A Visual IR Thermal Camera photo-1
US$ 2,500 - 2,650 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNiT
Model Number:
UTI160A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNiT
Model Number UTI160A
Usage Industrial
Theory Infrared Thermometer

Specifications

Handheld Infrared Thermal Imager Infrared Camera UTI160A Visual IR thermal Camera

Handheld Infrared Thermal Imager Infrared Camera UTI160A Visual IR thermal Camera

Handheld Infrared Thermal Imager Infrared Camera  UTI160A Visual IR thermal Camera

Features:
- Handheld
- Flip-up LCD
- Surface Measurement Function
- Non-Contact measurement
- Work Constantly in inspect stage
- Auto Alarm
- Thermograph Storagable

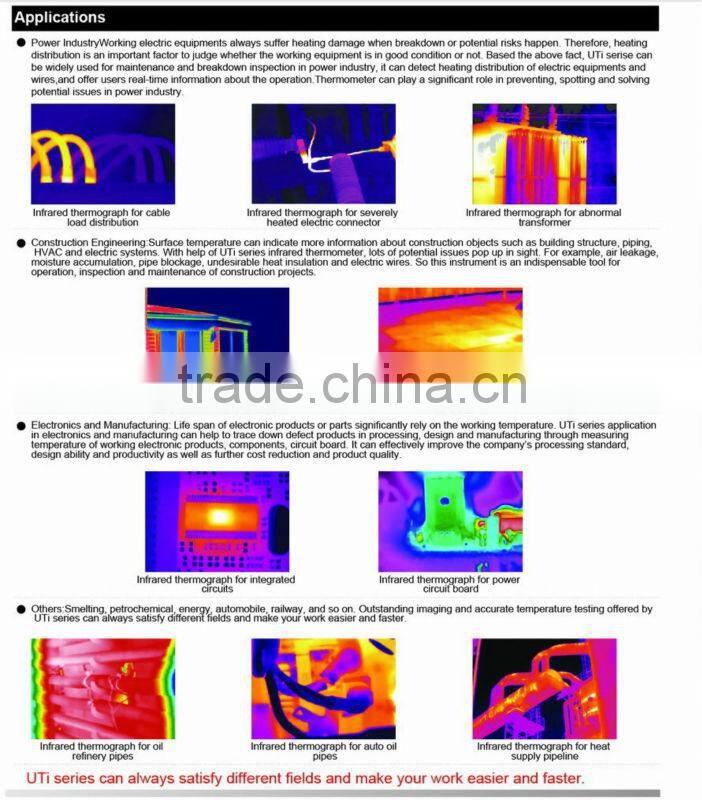

Application:
1. Industrial - Inspect Conductor Joint/Cable Clamp Electrical Joint
- Fan Motor, Transfomer Magnetic Shielding
- Gernator Iron Loss Test, Cable Overloaded test
- Analyze Cable Load Distribution
2. Chemical Industry - Inspect Liquid Level
- Test Boiler Refractory Lining
3. Automobile - Inpect Oil Pines, Brake Pad, Airconditional outlet, Car window
4. Building Inspect - Corroded Wall Bushling, Thermal Leakage
- Thermal Leakage of Building's Outer Wall

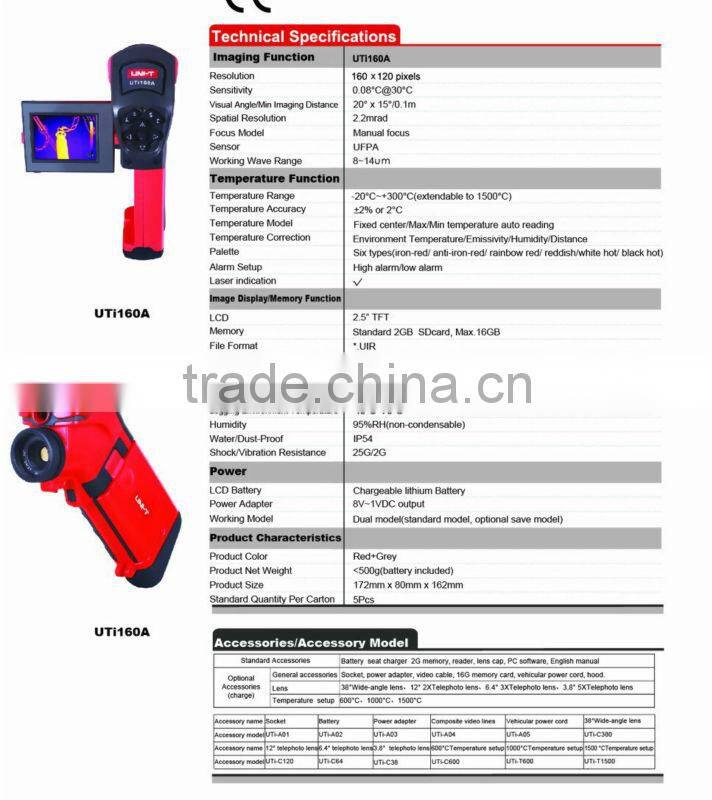

SPECIFICATIONSUTI160A
Imaging Performance
Thermal field of view20 x15 6.4 x4.8 12 x8
Spatial resolution2.20 mRad
Minium Focus Distance0.1m
Thermal Sensitivity (NETD)0.08 C- 30 C
Detector Data Acquisition60Hz
FocusManual
Detector typeUFPA, 160X120
Spectral band8~14 um
TemperatureMeasurement
Range 1-20 Cto 250 C
Range 2200 Cto 1000 C
Range 3800 Cto 1500 C
Accuracy2 C or 2%
Temperature alarmMax/min
CorrectionEmissivity (0.1 to 1.0, 0.01 increments), ambient temp., distance, relative humidity
Image Presentation
Digital Display2.5" LCD
LCD backlightCCFL
Video outputNTSC 60Hz / PAL 50 Hz composite video
Pallettes6
Image and Data Storage
Storage MediumMinIRSDcard/2GB
File format14 bit measurement data included, SAT format
Interfaces and SoftwareMinIReport
Power, Battery Life
BatterytypeRechargable Lithium Battery
Batteryoperating time2.5 Hours continous
Batterycharging1 bay intelligent charger powered via AC outlet
Power savingAutomatic shut down and sleep mode
Environmental and mechanical design
Operating temparatureNegative 15 to 50 C
Storage temparatureNegative 40 to 70 C
Rrelative humidity10% to 95%, non-condensing
Water and dust resistantIP54
ShockOperational: 25G
VibrationOperational: 2G
Weight (battery included)500g
Size172mmx80mm x 162mm
Tripod mounting1/4" _20
