Features
l PCI Express (1-port Type C and 1-port Type A)
l Compliant with Universal Serial Bus 3.1 specification Gen2
l Compliant with USB Attached SCSI Protocol Revision 1.0
l Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
l Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
l Supports USB data transfer rate of 10G/5G/480M/12M/1.5M bps
l Expands dual external USB3.1 Super-Speed plus Type-A ports on the system
l Each USB port supplies maximum +5VDC / 900mA power output to USB device
l Built-in over current protection on each USB port
l Support device remote wakeup function from USB keyboard or mouse
l Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
l Operation Temperature :0 to 60°C (32 to 140°F)
l Storage Temperature:-20 to 70°C (-4 to 158°F)
l Operation Humidity:5 to 95% RH
System Requirements
Windows 7 (X86/X64)
Windows 8.x / 10 (X86/X64) (Windows in-box driver)
Support Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
Package Contents

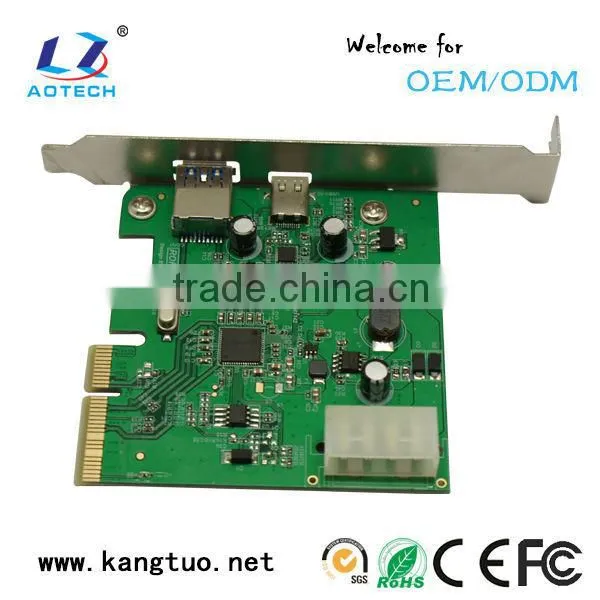

1 × PCI Express to 2 ports USB3.1 Host Controller Card(Type C+Type A)
1 × User Manual
1 × Driver CD
1 x Low Profile Bracket
USB3.1 is launched! It is an enhanced version of USB3.0, supports transportation up to 10Gbps, supports 100W power supply and 4K UHD transportation. USB3.1 Type provides positive and negative plug functionality, it would be most fashionable that used for tablet, Mobile Phone, Hard Disk Drive, and so on
Product Introduce: this product can extend to USB3.1 type C with ultra highspeed data transmission, and it is compatible backward USB2.0 and USB1.1. The speed is faster double than USB3.0. It supports hot-swapping, specifically manufacturing for personal computers, consumer electronics and communications equipment to provide higher and faster speed.
Specifications
Hardware
BUS | PCI Express (TYPE-A+TYPE-C) |
Controller | PCI Express USB3.1 Host Controller |
USB Standard | eXtensible Host Controller Interface (xHCI) Rev1.1 |
IRQ & IO | Assigned by System |
USB Communication
Interface | Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1 |
Speed | Super Speed+ (10Gpbs), Super Speed(5Gpbs) High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
No. of Port | 2-port(type-A and type-C) |
PCB Connector | USB3.1 USB Type-A port and USB3.1 TYPE-C port |
Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
Driver Support
Microsoft | Windows 7 (X86/X64) Windows 8.x / 10 (X86/X64) (Windows in-box driver) |
Linux | Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver) |
Environment
Operation Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% RH |
Storage Temperature | -20 to 70°C (-4 to 158°F) |
Welcome your OEM for the USB 3.1 Type C pci express card
