PR Multi-shape Building Machine /Building Machine
USD $30,000 - $80,000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Dalian
- T/T
You May Like
Product Details
| Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
| Use: | Roof | Place of Origin: | Liaoning, China | Brand Name: | PRO |
| Model Number: | 600-305 | Power(W): | 23.45KW | Voltage: | 380v |
| Dimension(L*W*H): | 11000mm*2200mm*2100mm | Weight: | 10t | Certification: | CE/ISO9001 |
| Warranty: | 13 months after B/L date | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

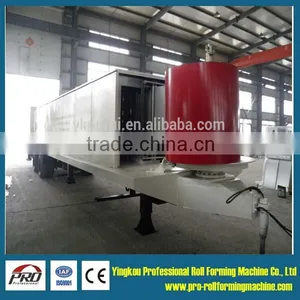

Multi-shape Building Machine
nical parameters
Size : 11000mmX2200mmX2100mm(With double axles 8 tires) | Total Weight : About 10 Ton |
Thickness of Bending Leaf : 10mm | Cutting Material : 12CrMoV, Heat treatment |
Cutting type : Mechanical Cutting Device | Forming type: Roll-formed and length-set cutting. |
Total motor power : 23.45KW Main Motor Power : 5.5KW Bending Power : 3.0KW+1.5KW Cutting Power : 3.0KW Hydraulic station power: 7.5KW Servo power: 0.75KW Seaming Power : 1.1KW+1.1KW | |
Material of rollers : 45# steel, quenched HRC 55~65 , plated with hard chrome. | Material of shafts : 45# steel, galvanized |
Bearing : made in Harbin | Step of molding : 13+1 |
Width of steel sheet: Feeding width : 600mm Finished width : 305mm Utilization ratio: 50.8% | |
Rolling thickness: 0.6-1.5mm | Applicable Span : 4~28m |
Working Speed : Straight Sheet : 15m/min Arch Sheet : 13m/min Seaming : 16m/min | |
Uncoiler : Coil Inner-diameter :450mm ~ 650mm, Fixed Coil Max width :600~620mm | |
Load :10Ton | |

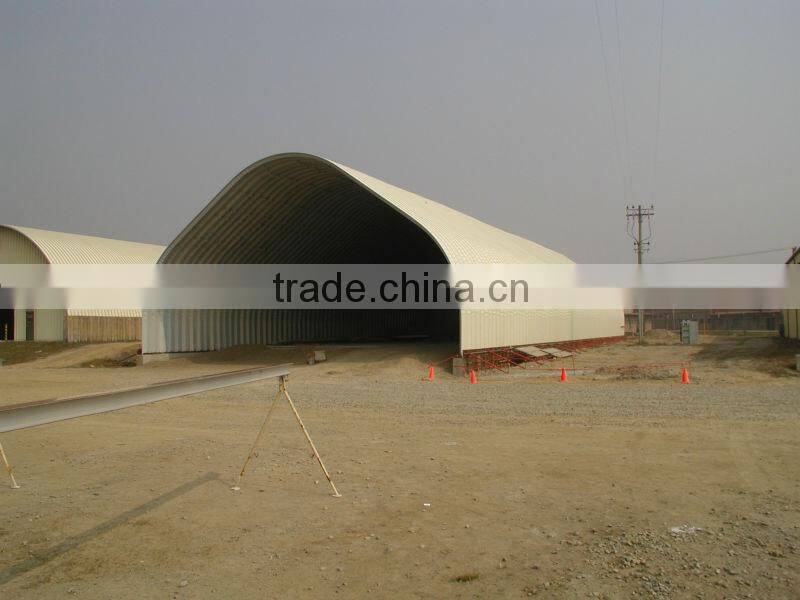

2.MSBM project
