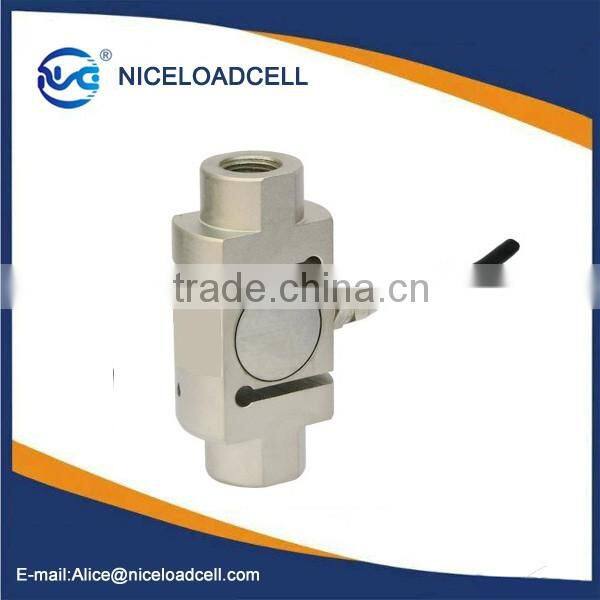

S-Style Load Cell
USD $70 - $80
/ Set
10 Sets(Min.Order)
- 8000 Set / Sets per Month
- FOB SHENZHEN
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CZS | Model Number: | CZS306 |
Product Description
Rated load:500kg / 750kg / 1000kg
Main features:Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Parameters:
| Precision | C2/C3 |
| Zero balance(%F.S) | ±1.0%FS |
| Rated output(mv/v) | 2.0±0.004mV/V |
| Creep(%F.S/30min) | ±0.024/±0.016 |
| Excitation voltage(V) | 9~12(DC) |
| Input resistance(Ω) | 350±5Ω |
| Output resistance | 350±3Ω |
| Ultimate overload (%F.S) | 150% |
| Insulation resistance(MΩ) | ≥5000(100VDC) |
| Temp. effect on span(%F.S/10℃) | ±0.02/±0.014 |
| Comprehensive error(%F.S) | 0.03±0.017%FS |
| Use temp. range(℃ ) | -10~+40 |
| Creep(%F.S/30min) | ±0.02/±0.017 |
| Safe overload (%F.S) | 120% |
| Defend grade | IP66 |
Installation size (mm):
