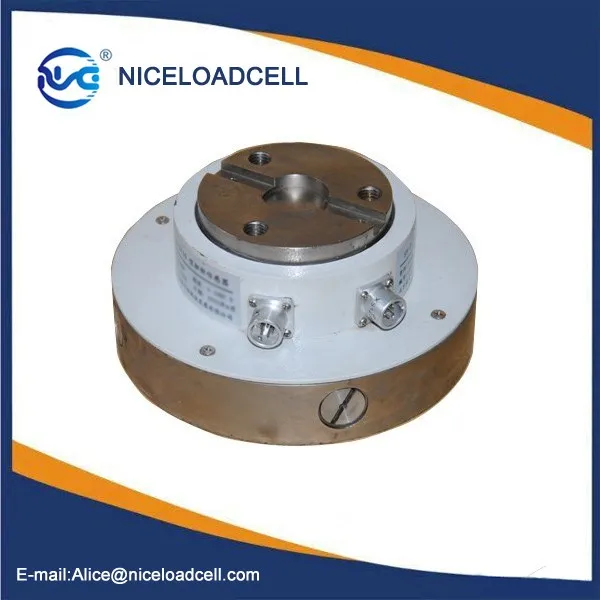

slip ring dynamic rotary torque sensor transducer

Rotating torque measure rotary torque transducer
Basic feature
Model: CZS-WTQ2150A
Capacity: Range:0~100~3000Nm
Precision: ±0.1; ±0.3; ±0.5%F.S
Output sensitivity: 1.0~1.5.0 mV/V, 4-20mA, 0-5/ 0-10Vdc
Type: rotatary torque transducer

Dimension: D195*100mm
Material: alloy steel
Apllication: double range static torque measurement
Characteristics : double range static torque sensor
Torque sensor is the precision measuring instruments to measure torque,revolving speed and the power of the mechanical.

Product characteristics
Resistance strain for sensitive components and integrated circuit consisting of integrated products, high precision, stable and reliable performance.
Double range static torque measurement.End for key flange connection, the end of flange connection
application
1,Rotating power equipment such as motor, engine, engine output torque and power of detection;
2,Fan, water pump, gear box, torque wrench, torque and power of detection;
3,Railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of detection;

4,Can be used in the sewage treatment system in torque and power of detection;
5,Can be used in the manufacture of viscometer;
6,Can be used in the laboratory, test department, in the process industry and process industry production monitoring and quality control;

Range:0~100~3000Nm
Response frequency:100μS
Rated output:1.0~2.0 mV/V
Insulation resistance:2000 MΩ/100VDC
Comp. precision±0.1; ±0.3; ±0.5%F.S
Input resistance:700±10/350±10Ω

work temp.:-35~+80℃
Output resistance:700±5/350±5Ω
Temp. compensation :20~+60℃
Zero point:0~±1%F.S
Temp. effect at zero:±0.1%F.S/10 ℃
Safe overload:120%F.S
Work voltage:12 VDC
Water proof:IP65/66

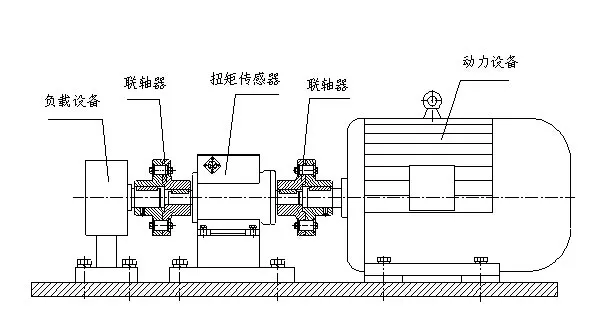

Installation
