pvc water pipe 110mm
- 20000 Meter / Meters per Month
- Shanghai
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DFP | |
| Model Number | Chemical class | Material | PVC | |
| Specification | 20MM-400MM | Length | 1~6m | |
| Thickness | According to the GB/T4219-1996 Standard | Standard | DIN(GB/T 4219-1996) |
Product Description
SHIE YU Professional in UPVC, CPVC, HDPE, PPH, PVDF PIPE&FITTINGS
SHIE YU Milestones
-1973, Shieyu Group is established in Taichung
1.We have own factoty for over 40 years with good quality and Service.
2.Good Quality: Implement NSF and ISO quality system on all products.
3.Good reputation in Southeast Asian,Middle east, South America market.
4.We have complete product ranges.
UPVC 1/2“~24”
CPVC 1/2”~24”
PPH 12 ~1200mm
HDPE 12 ~1200mm
PVDF 12 ~630 mm
ABS 12 ~630 mm
Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards
5.Flexible lead time
Product Name: UPVC Chemical Class DIN Pipe
Description:
| 1.Material: | PVC |
| 2.Size Available: | 20mm~400mm |
| 3.Standard: | DIN |
| 4.Color: | Gray |
| 5.Brand: | DFP |
| 6.Connection: | SCOKET |
| 7.MOQ: | 1000m |
| 8.Prodction Capatity | 20000m per Month |
| 9.Product Tests: | 100% tested |
| 10.Certification Available: | ISO,NSF,CNS |
Pipe Dimension:
Chemical Class
Unit:mm
| OD | Tolerance | En | PN KG/CM² at 23°c |
| 20 | +0.3 | 2.3 | 16 |
| 25 | +0.3 | 2.8 | 16 |
| 32 | +0.3 | 3.6 | 16 |
| 40 | +0.3 | 3.0 | 10 |
| 50 | +0.3 | 3.7 | 10 |
| 63 | +0.3 | 4.7 | 10 |
| 75 | +0.3 | 5.5 | 10 |
| 90 | +0.3 | 6.6 | 10 |
| 110 | +0.4 | 8.1 | 10 |
| 140 | +0.5 | 10.3 | 10 |
| 160 | +0.5 | 11.8 | 10 |
| 225 | +0.7 | 16.6 | 10 |
| 280 | +0.9 | 20.6 | 10 |
| 315 | +1.0 | 23.2 | 10 |
| 355 | +1.1 | 26.1 | 10 |
| 400 | +1.2 | 29.4 | 10 |
Water Class
Unit:mm
| OD | Tolerance | En | PN KG/CM² at 23°c |
| 20 | +0.3 | 2.0 | 16 |
| 25 | +0.3 | 2.0 | 16 |
| 32 | +0.3 | 2.4 | 16 |
| 40 | +0.3 | 2.0 | 10 |
| 50 | +0.3 | 2.4 | 10 |
| 63 | +0.3 | 3.0 | 10 |
| 75 | +0.3 | 3.6 | 10 |
| 90 | +0.3 | 4.3 | 10 |
| 110 | +0.4 | 5.3 | 10 |
| 140 | +0.5 | 6.7 | 10 |
| 160 | +0.5 | 7.7 | 10 |
| 225 | +0.7 | 10.8 | 10 |
| 280 | +0.9 | 13.4 | 10 |
| 315 | +1.0 | 15 | 10 |
| 355 | +1.1 | 16.9 | 10 |
| 400 | +1.2 | 19.1 | 10 |
UPVC Physical Property:
| PROPERTIES | UNIT | INDEX | TEST METHOD |
| Specific Gravity | g/cm3 | 1.3-1.5 | ISO 1183 |
| Vicat Softening Temperture | °c | 70 | ISO 306 |
| Tensile Strength | Mpa | 50 | ISO 527-2 |
| Impact Strength | KJ/M² | 8.0 | ISO 179 |
| Tensile Modulus | Mpa | 2600 | ISO 527-2 |

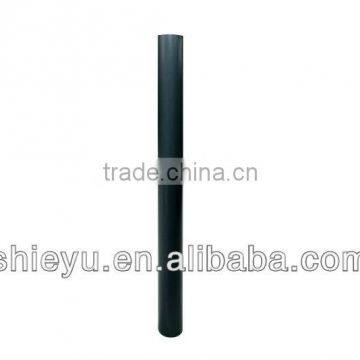

Product Picture:
ISO Certificate:
NSF Certificate:
Contact Us
- Kunshan Shieyu Valve Co., Ltd.
- Contact nameJenny Tam Chat Now
- Phone86-512-57775296
- AddressNo. 158, Chenggong Road, Yushan Town, Kunshan
