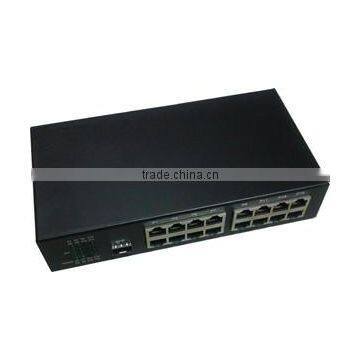

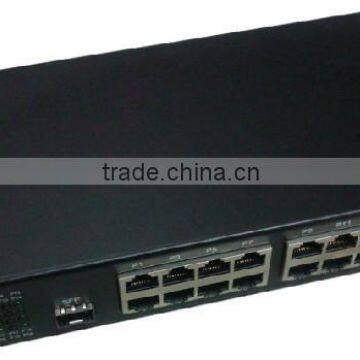

ethernet Switch with 1*100Base-FX Ethernet 1*9 optical module and 16* 10/100Base-TX RJ45 Ethernet port
Products with VLAN management, The product complies with IEEE802.3 10BASE-T Ethernet, IEEE802.3u 100BASE-TX, ANSI/IEEE 802.3 N Fast Ethernet Way automatic negotiation IEEE802.3x flow control, In addition, EMC anti electromagnetic radiation in line with Part15 FCC, to ensure that the environment and the human body without harm without radiation.
- support 1 100M 1*9 port, and 4*10/100M adaptive Ethernet RJ45 port;
- Compatible with IEEE 802.3 10Base-T, ieee802.3u 100base TX, ieee802.3ab 1000BASE-T, ieee802.3z 1000base FX the standard, and other equipment manufacturers seamless docking.
- With the international advanced project and the performance of the integrated chip, the work is stable, the data transmission is stable, and the anti-interference ability is strong.
- Support for the transmission of VLAN over length data packets, and can be used to support the exchange of IEEE802.1Q protocol
- Twisted pair ports support rate and full / half duplex auto negotiation
- Supports IEEE802.1Q and ISL optional backbone connection;
- Support for automatic MDI/MDIX, no need for cable selection
- Ultra low transmission delay, using a variety of forwarding mechanism, the full speed forwarding rate
- LED real-time monitoring equipment of the current working state, is conducive to the network diagnosis and fault finding
- Good thermal stability and long time stability.
- average working time more than 50000 hours, in accordance with the standard of telecom operation;
1.Product form & Performance
- Electrical interface: 100M 4* 10/100Base-TX RJ45 Ethernet port
- Optical interface: 100M 1*100Base-FX Ethernet 1*9 optical module
- Back bandwidth: 1.2Gbps
- Packet forwarding rate: 1.0MPPS
- MAC table entries: 1024
- Maximum packet length: 1600BYTE
- Lightning protection index:AC power supply port: differential mode +/-2kV, common mode +/-4kV; service interface: common mode +/-6kV
- Physical size (width and depth): 160mm x 80mm x 28mm
- Relative humidity: 5% - 90% No condensation
- Operating temperature: 0℃ - 50℃
- Storage temperature: -20 ~ 70℃
- Power: AC:165V ~ 265V 50-60Hz (Built in power supply)
DC:5V;2A(External power supply) - Power waste: <5W
- Barrier free working time: >70000 hours
- enclosure: IP40 protection class, metal housing
- size: 60 x 111 x 144MM
- weight: 1 kg
- Installation: desktop, wall mounted, guide rail type installation (optional)
10BASE-T IEEE802.3u Ethernet, 100BASE-TX ANSI/IEEE Fast Ethernet, N 802.3 Way IEEE802.3x automatic negotiation IEEE802.3 traffic control
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
