Product Details
Place of Origin | Guangdong, China | Brand Name | POWERLINK | |
Model Number | PL-24V1D-SM-FC-20KM |
Product Description

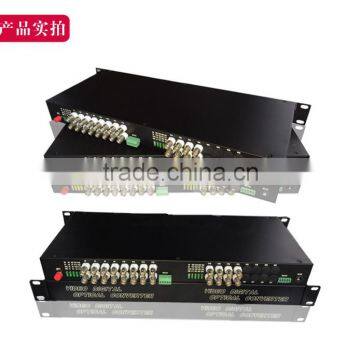

24 Channel Video & 1 RS485 Return Data to Fiber SM 20km Optical Video Multiplexer 1CH to 64CH cctv fiber video converter fiber optical transmitter and receiver factory
Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.
Fiber optic Video+Data+ Audio Multiplexer/Converter-Transmitter+Receiver can transmit and extend a maximum of video up to a few tens of kilometers. The fiber video converters operate as a transmitter/receiver pair for the transmission of NTSC or PAL video signal with bi-directional audio and bi-directional RS422 or RS485 data over fiber cables. We supply 1, 2, 4, 8, 16, 24, 32 channels fiber video converter with return or bidirectional data&bi-directional RS422 or RS485 data. Plug and Play design ensures the ease of installation and operation. Please feel free to contact us for all your video to fiber and other video conversion requirements.
Descriptions
- Model: PL-24V1D-SM-FC-20KM
- Transmitter + Receiver
- Fiber Mode: Single-Mode
- Wavelengths: 1310nm/1550nm
- Optical Power Budget: 12dB
- Maximum Transmission Distance: 20km
- Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
- Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)
Key Features
- Support Point-to-Point or Daisy-Chain connection
- Uncompressed Digital Composite Video over one fiber
- Compatible with all PAL, NTSC,SECAM Video Systems
- Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
- Single-Mode Fiber Support for Distances up to 100 km
- LED Status Provide Rapid Indication of Operating Parameters
- No EMI or RFI and no ground loops
- Support Coarse Wavelength Division Multiplexing (CWDM)
- Stand alone
- Produce according to customer's specifications,providing OEM
Video | Connectors | ||
Number of Channels | 1 channel to 64CH Video | Video | 75Ω BNC (Gold Center Pin) |
Input/output impedance | BNC 75Ω | Data | 3 Pin Terminal Block |
Input/output Compatibility | PAL,NTSC,SECAM | Audio | Terminal Block |
Input/output voltage | 1.0 Volt p-p | Optical | FC (Standard) |
Bandwidth | 6.5MHZ | Standalone power | Screw terminal block |
Bit Resolution | 8-Bit Digital Transmission | Rack Power | AC line card |
Differential Gain | < 1.5% | Electrical & Mechanical | |
Differential Phase | < 1.5° | Input Power Requirements | DC 5V@2A |
Tilt | < 5% | Power Adapter | AC 100V~240V |
Signal-to-Noise Ratio(SNR) | > 67 dB | Power Consumption | < 3W |
Shipping weight | 2kg(include TX & RX) | ||
Data | |||
Data Formats | RS485(2-wire or 4-wire), RS232/422,Contact Closure | ||
Data Rate | DC to 115.2Kbps | ||
Bit Error Rate | 10E-9 | ||
Audio | |||
Number of Channels | 1 channel forward audio | ||
Audio in/output impedance | 600Ω Balanced/Unbalanced | ||
Audio in/output Level | 6 dBm | ||
Signal-to-Noise Ratio (SNR) | >80 dB | ||
Bit Resolution | 24-Bit | ||
Bandwidth | 10Hz~20KHz | ||
Environmental | |||
Operating Temperature | -45°C~+75 °C | Storage Temperature | -45°C~+85 °C |
Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
