Ice Machine Commercial For Fresh Food Compact Ice Machine With Ice Storage Bin

Snowkey Customers All Over The World:

Detailed Product Description

Snowman Flake Ice Maker, the flake ice compared with other kinds of ice , flake ice have a bigger contact area and thus the best refrigeration effect oin all kinds and forms of ice, the surface area of every ton of ice flakes can be as large as 1741m^2.

Snowkey will offer you the best scheme of tailor-made ice-making system.We have not noly supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.

Snowkey flake ice Machine has found extensive application in large chain supermakets and such fields as aquatic food processing,fuel chemical industry, artificial sking ground, large-scale concrete construction projects,temperature reduction in mines, medical facilities, ocean-going fishing ships.ect.

model        daily output           thick of the ice          net weight    ice storage capacity
F050A           500kg                     1.8-2.2mm              166kg                   560kg
F070A           750kg                     1.8-2.2mm              174kg                   560kg
F10A             1000kg                   1.8-2.2mm              208kg                   560kg
F12A             1200kg                   1.8-2.2mm              234kg                   450kg
F16A             1600kg                   1.8-2.2mm              336kg                   600kg
F20A             2000kg                   1.8-2.2mm              384kg                   600kg
F25A             2500kg                   1.8-2.2mm              398kg                  1300kg

Detailed Product Description

Snowman Flake Ice Maker, the flake ice compared with other kinds of ice , flake ice have a bigger contact area and thus the best refrigeration effect oin all kinds and forms of ice, the surface area of every ton of ice flakes can be as large as 1741m^2.

Snowkey will offer you the best scheme of tailor-made ice-making system.We have not noly supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.

Snowkey flake ice Machine has found extensive application in large chain supermakets and such fields as aquatic food processing,fuel chemical industry, artificial sking ground, large-scale concrete construction projects,temperature reduction in mines, medical facilities, ocean-going fishing ships.ect.

model        daily output           thick of the ice          net weight    ice storage capacity
F050A           500kg                     1.8-2.2mm              166kg                   560kg
F070A           750kg                     1.8-2.2mm              174kg                   560kg
F10A             1000kg                   1.8-2.2mm              208kg                   560kg
F12A             1200kg                   1.8-2.2mm              234kg                   450kg
F16A             1600kg                   1.8-2.2mm              336kg                   600kg
F20A             2000kg                   1.8-2.2mm              384kg                   600kg
F25A             2500kg                   1.8-2.2mm              398kg                  1300kg

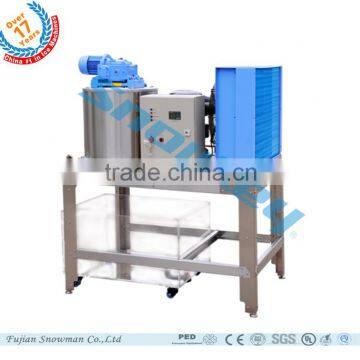

Snowkey Flake ice making machine:

Snowkey Flake Ice Using Examples:

Best processing technology -from the most advanced processing equipments ;

(Pressure vessel: Pressure vessel with ASME authentication; professional security manufacturing processes)

Material Processing--CNC laser cutting machine :

Evaporator Processing--CNC electronic processing for the inner wall of the evaporator :

Ice Blade Processing-- the most unique patent design, the most clean ice scraping effect :

Equipment Insatllation--the most skilled technical workers, the most rigorous working attitude:

Electrical Installation--the most experienced electrical workers:

Intelligent control -from SNOWKEY full automatic electric box;

(Material: Electrical components imported from international famous brands, such as Schneider, Siemens.,etc)

Performance Testing--Product performance testing center:

Logistics Packaging,Loading And Transport:

Installation And Training On Site--the most professional engineer and the most effective working:

The Strongest After-Sales Service:

1,SNOWKEY standard design conditions:

Ambient temperature is 33°C,water supply temperature is 20°C;

While if your local conditions is different from it,then you can choose the ambient temperature limit from 5~40°C and the water supply temperature limit from 5~30°C;,

2,SNOWKEY flake ice specification:

Thickness from 1.5mm to 2.2mm;

3,SNOWKEY power supply:

Full electric system complying with the general international standard;

4,SNOWKEY delivery for flake ice machine:

With wooden cases;In 20 foot container;

1-10 ton/day delivery:25~35 working days;

Detailed Product Description

Advantages Flake-ice

Flake ice is  flat in shape, which can be applied to seafood cooling, meat processing and industrial procedure. The most important use of Snowkey flake ice is concrete cooling, especially in hot climate. Though the flake ice is cooled down slightly-7, it is still a kind of dry ice, which means its heat quantity is potential and the main source of cooling energy can be 100% guaranteed. Since it is a kind of dry ice, the cooling input of flake ice can be calculated accurately and the temperature effect to the concrete mixture is obvious. Flake ice is movable freely. They will not stick together, and condense to lump. Therefore, flake ice is convenient to store and transport. Because of the above features and moderate production cost, flake ice is greatly applied to many industries and food processing.

Scientific design and many years of engineering experience

Snowkey will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.

Safety and sanitation

Snowkey always aims at manufacturing the products up to high sanitary standards. Every component of our ice machines is made of SUS30 stainless steel, pure aluminum alloy or PE material, so none of our ice machines fall short of the international certification standards of HACCP and FDA. The ice produced by our ice machines is dry, pure, powderless and unlikely to lump in the lower part of the machines.

High reliability and low breakdown rate

Snowkey ice machines has adopted and consolidated the 42-year-old technology and experience of Japan Nobleicer Co. in the field of manufacturing and processing ice-making systems. 80% of the fittings of Snowkey ice-making systems are chosen from imported components. Equipment structure is designed for resistance to high load and long-term use. Through several decades of research, Snowkey has manufactured highly reliable ice flaker equipment that can produce quality ice and stand over 26,000 hours of constant operation without breakdown. So far its products have found wide application in various fields all over the world.

High efficiency and energy saving

We have optimized the design of ice flaker units to ensure that Snowkey internally-scraping ice flaker units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity. The freezing surface of the ice produced by Snowkey ice machines is over 1750 m2/ton. Compared with other brands of units, Snowkey ice flakers can product more ice when the same compressor is used.

Simple maintenance and convenient moving

All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.

Great adaptability and stable quality

Snowkey products can ensure good running and normal ice output at the environmental temperature of 5-40,and its specially-designed type can guarantee normal running even in the most unfavorable conditions (-30~60)

 After-sale service

 We have been constantly offer every customer not only top products quality but also service, The After-sales Service Dept. consists of professional engineers.
