Home > Products > FTTH Module > 2.5G 1310nm DFB LC TOSA

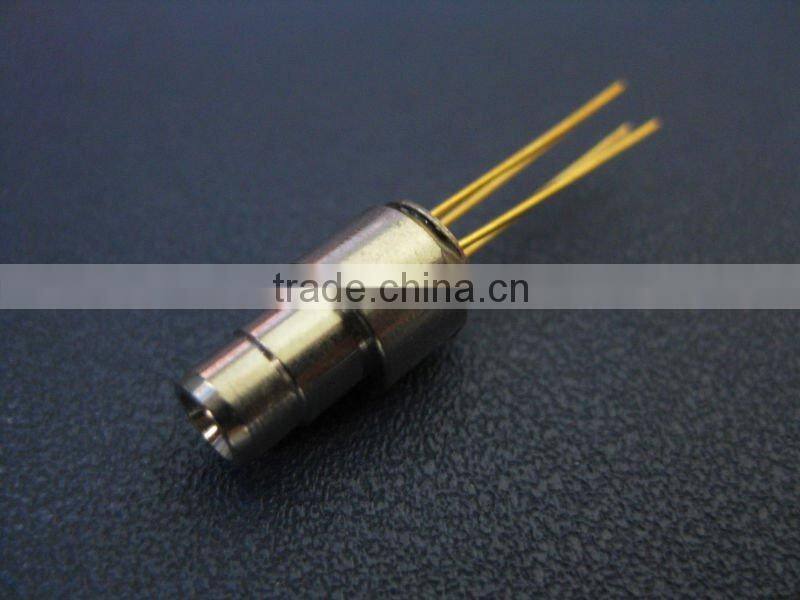

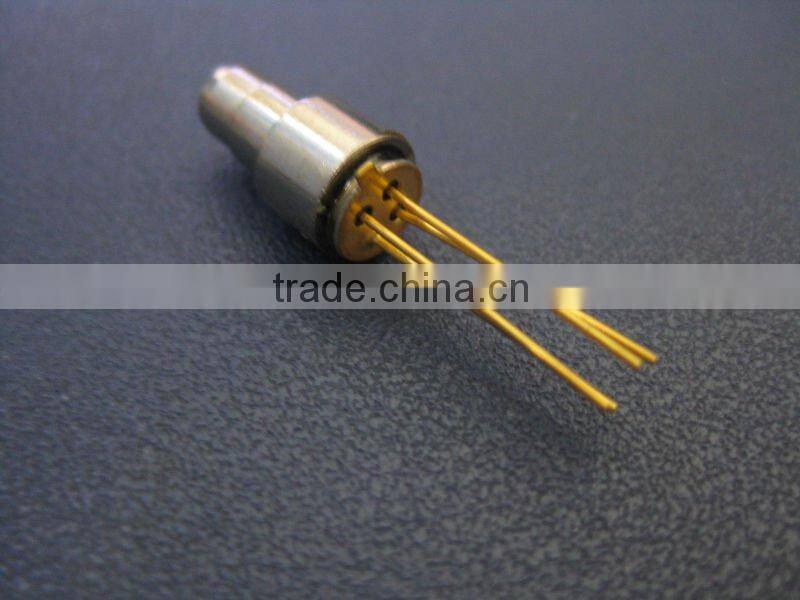

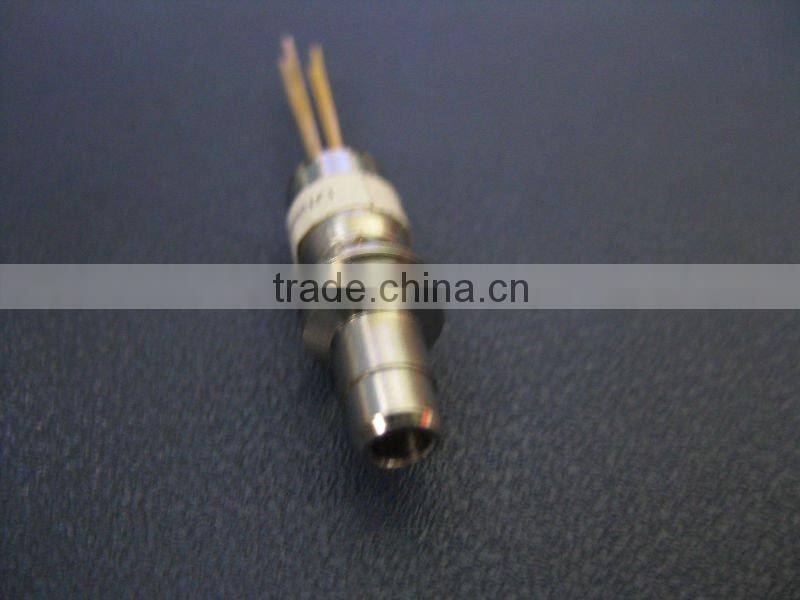

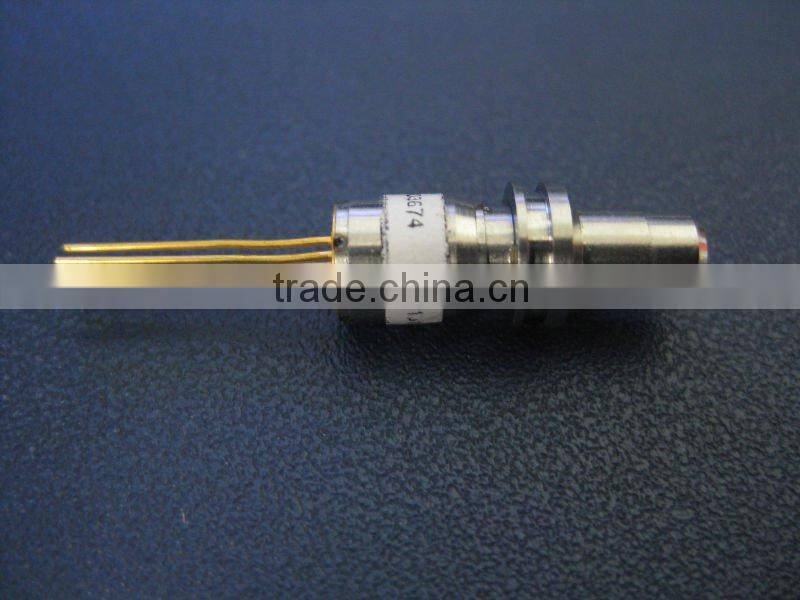

2.5G 1310nm DFB LC TOSA
- 5000 Piece / Pieces per Month
- FOB chongqing
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | O-Send | |
| Model Number | OLTXXXXXX | Type | Laser Diode | |
| Package Type | Other, coaxil |
Product Description
Specifications
Digital Optical TransmissionAbsolute maximum ratings
Parameter | Symbol | Min. | Max. | Unit | Test condition |
Storage temperature | Tst | -40 | +100 | °C | - |
Operating temperature | Top | -20 | +70 | °C | - |
Reverse voltage | VR |
| 2 | V | CW |
Soldering temperature/time |
|
| 260/10 | °C/S | - |
Optical & electrical characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
| Center wavelength | ||||||
λc | 1290 | 1310 | 1330 | nm | - | |
| 1530 | 1550 | 1570 | |||
Threshold current | Ith | - | 5 | 15 | mA | 1310nm,25°C |
Spectral width | Δλ | - | 1 | 2 | nm | CW,Ith+20mA,FP |
| 0.5 | 1 | CW,Ith+20mA,DFB | |||
Operating voltage | Vop | - | 1.1 | 1.5 | V | CW,Ith+20mA |
Rise/ Fall time | Tr/Tf | - | 0.2 | 0.7 | nS | CW,Ith+20mA |
Monitor current | Im | 0.1 | 0.7 | - | mA | CW,Ith+20mA |
Optical Isolation | Iso | 30 | - | - | dB | 25°C |
Note: You could chooaw with isolator or not
