2016 best quality china quality factory FTA HD Digital dvb t2 dvb s2 combo decoder

Name: 2016 best quality china quality factory FTA HD Digital dvb t2 dvb s2 combo decoder
Brand: Vmade
Availability: InStock

FOB Price

USD $1 - $12.7 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Vmade

Model Number:

combo T2+S2 M5

Compatible with all TVs

It's Also a Media Player

CPU	Montage CT60001 (128 pin) MIPS 34Kf@600MHz
Memory	32X16Mbit DDR2 Frequency1066
Flash	32M bytes
Demodulator Type	Montage DM6000 Chip Set
S2+TUNER	Montage TS2022 Chip Set
T2+TUNER	MaxLinear MXL 608
Front Panel	USB 2.0 Embedded One Host,
	4-digit LED display on front panel
	red LED Standby,green LED Lock
	Panel KEY, POWER, CH+ ,CH-

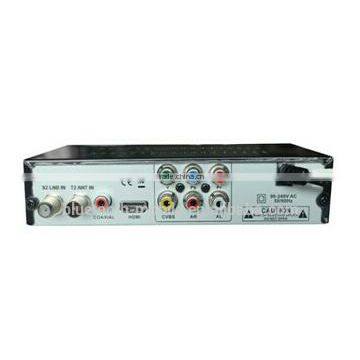

Rear Panel	S2 LNB IN input connector		IEC60169-2
	T2 ANT input connector		IEC-162-2(IEC Female)
	HDMI V1.3
	RCA CVBS AL AR Connector x1
	Ypbpr RCAx1
	Coaxial x1
	Power AC100~240V 50Hz/60Hz
DVB-T2 Demodulation
DVB-T2 Demodulation	Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)
	Input RF Frequency 48~866MHZ
	Bandwidth6MHz,7MHz,8MHz
	Constellation QPSK 16-QAM 64-QAM and 256-QAM
	FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
	Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4
	FFT Mode 2K/ 8K/32K
	Support Single and multiple PLPS
	Input level -83~ -5dBm
DVB-S2 Channel Decoder
DVB-S2 Channel Decoder	Frequency Range	950MHz-2150MHz
	Sensitivity Level	- 10~ - 81dBm
	Mode IFFT
	FEC Mode	1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	Guard intervals	1/4,1/8,1/16,1/32
	Constellation	QPSK,8PSK,16APSK
	Neighboring channels immunity and Protection	According to ETSI TR 101 190 V1.2.1
	Active Ant Power	13/18V DC @ 500mA MAX,Overload Protection
