Supermarket 2D Barcode Scanner Omni-Directional Bar Code Scanner

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

1.CE,ROHS,FCC
2.plug and play
3.Omni-Directional Bar Code Scanner
4.24 month warranty
5.CMOS technology

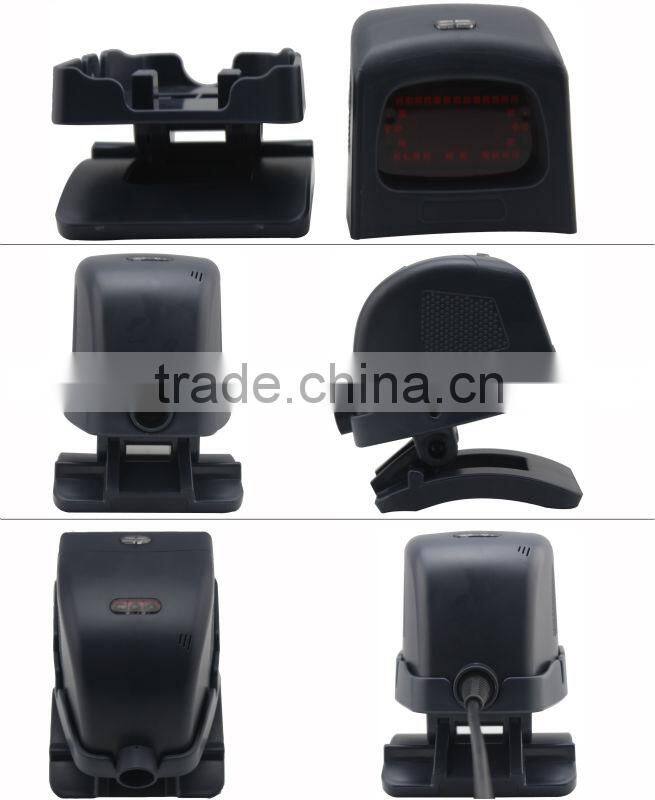

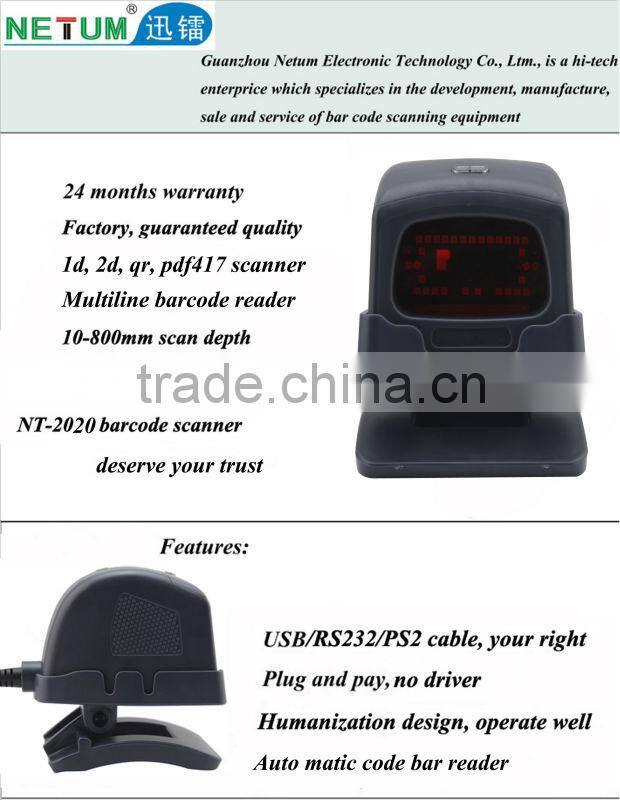

Supermarket 2D Barcode Scanner Omni-Directional Bar Code Scanner

1. scan all 1d, 2d, qr and pdf417 barcode
2.automatic scanning barcode without doing anything

3.USB/PS3/RS232 interface, more choice
4.multiline scan barcode, more accurate and effecient

Product parameters

Operational
Light Source		Visible Red LED 625nm±6.5nm
Visual Indicators		Blue=ready to scan;white=good read;Yellow=automatical scanning
Host System Interfaces		USB,RS232,keyboard Wedge,IBM 46xx(RS485)
Mechanical
Dimensions(LWH)		(With stand)1300mm98mm128mm;(Host)125mm86mm85mm
Weight		(With stand)510G;(Host)310G
Electrical
Input Voltage		5VDC
Operating Power(typical)		2W(400mA@5V)
DC Transformers		Class2:5VDC@2A
LED Class		Class1;IEC60825-1 EN60825-1
EMC		FCC Part15,IEC60825-1,EN55022 Class B
Environmental
Operating Temperature		0°C-45°C
Storage temperature		-40°C-60°C
Humidity		0% to 95% relative humidity,no-condensing
Drop		Designed to withstand 1.5m(5') drops
Environmental sealing		Sealed to resist airborne particulate contaminants
Light Level		100000 Lux(9290 foot-candles)
Scan performance
Scan pattern		Area Image(1280*512 pixel array)
Motion Tolerance		47 cm/s(18 in/s) for 13mil UPC at optimal focus
Scan Angle		Horizontal:50
Print Contrast		20% minimum reflectance difference
Pitch,Skew		75°,75°
Decode Capability		1D:Code 39,Code 93,Code 128,UPC/EAN/JAN,Code2 of 5,Code11,Codebar,MSI Plessey,GS1 databar;Telepen,Trioptic PDF:PDF 417, MicroPDF417 2D:QR code,Micro QR Code,Data Matrix,Aztec Code,Maxicode,Code block, Composite code, POSTNET,PLANET,UPC,Intelligent Mail,Canada Post,Australia Post,Japanese Post,Royal Mail RM4SCC,KIX Code OCR:OCR-A,OCR-B,E-13B MICR
