Home > Products > Selector switch > ONPOW Selector SWITCH LAS0-K series (New)

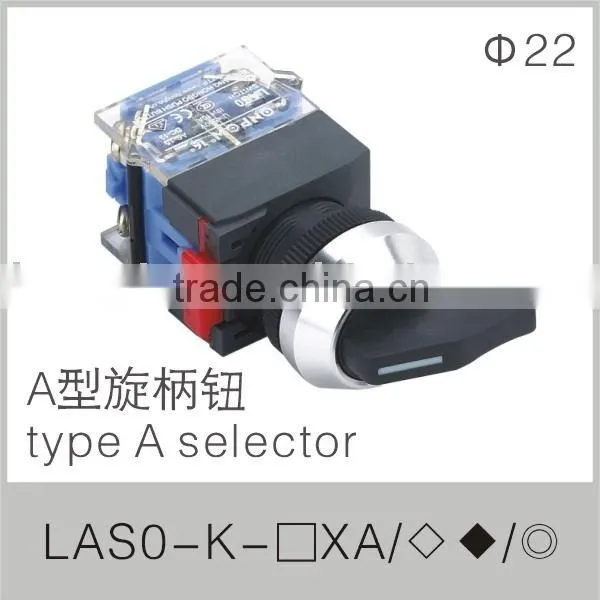

ONPOW Selector SWITCH LAS0-K series (New)
USD $1.5 - $2.8
/ Piece
500 Pieces(Min.Order)
- 100 Piece / Pieces per Month
- Shanghai or Ningbo
You May Like
-
Y090E-11XB selector switch,2position select switch,3position select switch
-
selector switch square LAS0-A(selector knob switch,electrical push button switches)
-
selector HBY5E
-
rectangular selector LAS1-A( selector switch,switch)
-
rectangular illuminated selector LAS1-A(illuminated push button switch,selector push button switch)
-
ONPOW (push button,pushbutton switch,push button switch)SELECTOR SWITCH LAS0-K series (New)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ONPOW | |
| Model Number | LAS0-K-11XB | Protection Level | IP67 | |
| Max. Current | 10A | Max. Voltage | 380V |
Product Description
Specifications
Convenient installment and beautiful surface.New type and stable structure.
VDE approvals.
IP67
Operating Temperature -25 ~ +55(No freezing)
Operating Humidity 45 ~ 85%RH(no condensation)
Contact Material Silver alloy
Contact resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Max.dielectric strength 3000V,AC50Hz
Vibration Resistance 50Hz,Swing about 1.0mm
Shock Resistance Over 10g
Mechanical Life
Flat button switch≥1000,000times,
Selector switch≥500,000times,
Others≥200,000t imes
Electrical Life
Over 50,000times
Terminal
Screw terminal,
Diameter of welded wire2×1.5mm
max Pin terminal6.3×0.8mm
Operation strength
800g~2200g(accordingto the quantity of switch units
Operatin travel About 3.8mm(pushbutton)
