Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > SMA Crimp Automotive Connector
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
twinlink
Model Number:
50SMA1S11-RG174-001
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Quality Guarantee Sma Pin Connector for PcbaNegotiableMOQ: 500 Pieces -
Sma rf Coaxial Pcb ConnectorNegotiableMOQ: 500 Pieces
-
Ternary Alloy Plating N Plug to SMA Jack rf Coaxial AdapterUS$ 0.6 - 2MOQ: 1000 Pieces
-
SMA to MBX AdaptorNegotiableMOQ: 5000 Pieces
-
MBX to SMA AdaptorNegotiableMOQ: 5000 Pieces
Place of Origin
Guangdong, China
Brand Name
twinlink
Model Number
50SMA1S11-RG174-001
Type
SMA
Application
RF
Gender
Female
Specifications
SMA Crimp Automotive Connector1.Long life-span
2.Excellent performance
3.High frequently
4.MIL-C-39012 CECC22110

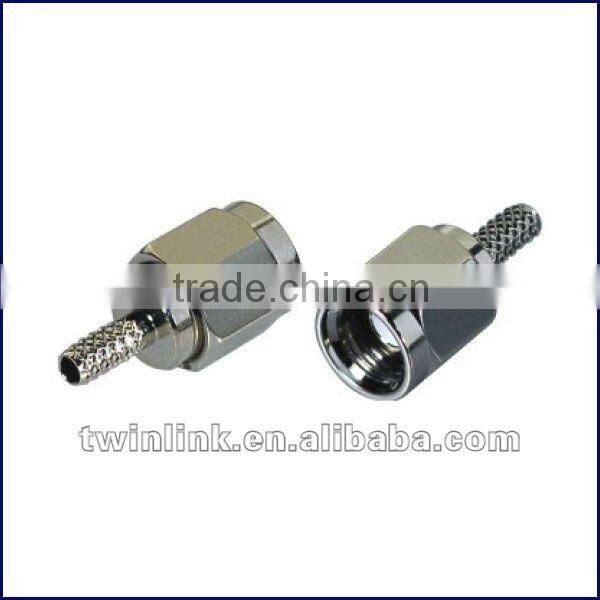

SMA Crimp Automotive Connector
Series of SMA products one application extensive small-scale coaxial person who join that whorl join. It meet with the standard of MIL-C-39012, IEC169-15 & CECC22110. It has reliable characteristics, durable, performance are excellent, long life-span. Suitable for the microwave equipment and body of the digital c o mmunication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
Mechanical Characteristics
| Characteristic Impedance: | 50Ω |
| Frequency Range: | 0-18GHz |
| Wishstanding Voltage: | ≥750-1500V,50Hz |
| Working Voltage: | ≥250-500V,50Hz (see level) |
| ≥65-125V,50Hz (Height 21000M) | |
| Insulation Resistance: | 5000mΩ |
| Insulation Resistance: | Inner conductor: ≤5mΩ |
| Outer conductor: ≤5mΩ | |
| RF leakage(1GHZ): | Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| Material |
| Pin conductor: | Brass/Beryllium copper--Gold plated |
| Body / Outer conductor | Beryllium copper--Gold plated |
| Stainless steel--Passivation | |
| Brass--Gold plated / Ternary Alloy (Cu+Zn+Sn) | |
| Phosphor bronze --Gold plated | |
| Plug: | Beryllium copper / Phosphor bronze--Gold plated |
| crimping sleeve: | Brass--Gold plated |
| Insulator: | PTFE / PFA |
| Sealing | Silastic |
package
Vacuumize
Vacuumize + Carton
Foam
Blister
sma rf coaxial pcb connector
