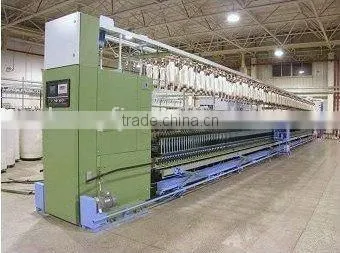

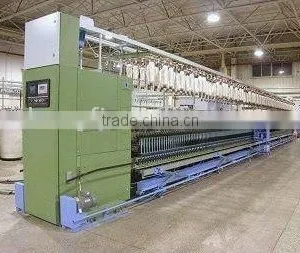

JWJL07 Wool Ring Frame,Integral Doffing System for Short Ring Spinning

Specifications

1.Wool Ring Frame
2.Integral Doffing System
3.Short Ring Spinning
4.Modified Short Ring Spinning
5.CE & ISO Certificate







Use







JWJL07 integral doffing and JWJC is suitable for short ring spinning frame and the modified short ring spinning frame.It does not damage the spindles and is of high level automation and ensures the continuity of doffing .The system reduces the operators by 1/2 to 2/3 and decrease the labor intensity .







Main Specification



1,Short ring spinning machine system of collective doffing advanced, reliable, and simple structure, in the short drive to install the system to adapt to the original machine are in place, the original machine parts without any changes.


Short ring spinning machine



 2,Collective doffing system doffing time is short, the whole time yo yarn 2 to 3 minutes to complete,

placed inside and outside the aircraft by the air cylinder control, lifting the induction motor control, accurate, reliable, and grasping a tube extubation accurate and stable. Full pipe to fall from the yarn, and then the next drive, and reliability, smooth, coherent.
full of yarn to achieve the delivery by the conveyor belt, simple structure, reliable.
1/2-2/3 average savings of about doffing work.

The main features of intubation trolley



1,Empty tube inserted in the spindle on the car to complete the intubation. Intubation trolley intubation rate, and with pressure pipe fittings, without any manual operation of air traffic control, powered by the battery separately, to avoid walking in the process of ignition in the hidden, safe and reliable; and in intubation trolley equipped with automatic stop function of walking in the empty tube end plug, can automatically stop running.

Transformation of part of the spindle


2,Collective transformation doffing system installed in the original installation of the spindle on the spindle with a support device cap with silk waste yarn and cutting disc brake spindle device with a high rate and to improve plug tube when driving remain the first rate.

Collective doffing direct distribution system, the main spindle configuration at the factory has increased

spindle apparatus, waste disk, cut yarn spindles with brake device.

Short car doffing basic dimensions of collective



1,Supply pressure 0.6MPa.
2,Interface intake pipe size: 12X18mm (diameter X diameter)
3,Inlet duct arranged in the rear exit.
4,Ten thousand cars with 4 sets of intubation.
5,Gas rack placed outside the maximum size: 1433mm





You are warmly welcome to visit our company!
