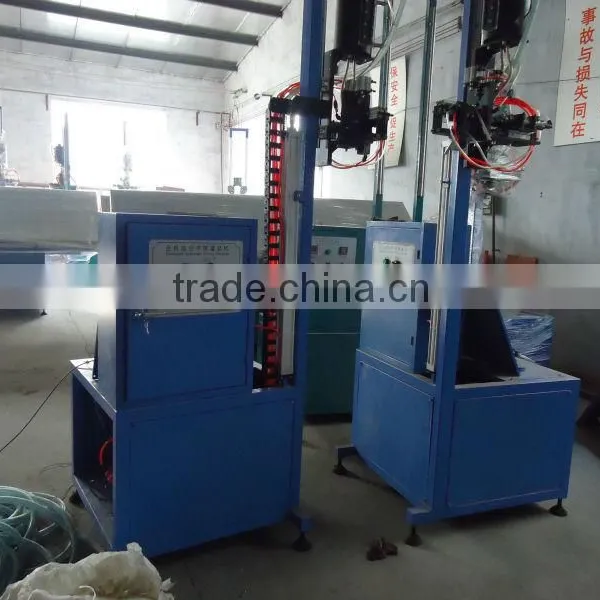

Desiccant Automatic Filling Machine/ Double Glass Machinery

Name: Desiccant Automatic Filling Machine/ Double Glass Machinery
Brand: Better
Availability: InStock

FOB Price

USD $400 - $700 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shandong, China

Brand Name:

Better

Model Number:

DFG02

Double Glass Machinery
1.CE ISO
2.PLC control system
3.Automatic feeding system
4.Imported component

Insulating Glass Production Line / Double Glass Machinery

1.Description

PLC system to control the operation.
This machine is suitable to fill the spacer shaped by the automatic spacer bending machine and the Normal straight pin spacer.
The filling height can be adjusted according to the size of the aluminun spacer.
It can feed the needed desiccant automatically.
It owns the unique and advanced feeding device.
The key component are supplied by international well-known manufactures

2.Technical Data

Desiccant diameter	0.5-0.8mm
Min Filling aluminum spacer size	150*150mm
Max Filling aluminum spacer size	2000*2000mm
Filling speed	5-8s(1000*1000mm9A)
Aluminum sapcer size	6-24mm
Air supply	0.6MPa
Power supply	AC220V,50HZ, 1KW
Figure Dimension	800×800×3650mm
Total Weight	300Kg
