gass straight-line edge grinding machine (RTJM93P)

FOB Price

USD $13,920 - $14,200 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Machine Type:	Glass Edging Machine	Place of Origin:	Shandong, China
Brand Name:	Better	Model Number:	RTJM93P	Voltage:	380V 50HZ 3 phase or customize
Power(W):	10KW	Dimension(LWH):	6800X1000X2500mm	Weight:	1800KG
Certification:	CE	Warranty:	2 years	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

edge grinding machine
cess straight edge of flat glass with arris,coarse grind
2.Mitering angle:45,90
3.CE

gass straight-line edge grinding machine (RTJM93P)

Glass edge finish machine/Glass line edging machine/Glass edge grind machine

1.Brief description

RTJM glass straight line miter edging machine is specialized machine for processing the straight edge of flat glass with arris,coarse grinding, fine grinding and polishing have been done in one processing travel, manual and automatic operation is at customer’s option, as well as for legend of grinding wheels.

2.Main technical parameters

1. Power: 380V / 50Hz
2. Inputting speed: 0.8~5.0m / min
3. Max. glass size: 2500×2500mm
4. Min. glass size: 80×80mm
5. Glass thickness: 3~25mm
6. Mitering angle: 45° and 90°
7. Total power: 18.5KW
8. Overall dimension: 6800×1000×2500mm
9. Machine cast-iron base size: 2840x720mm

10. Legend of grinding wheels:

Legend of grinding wheels for 45° angle

3.CONFIGURATION

1. The foundation, transmission box and fro-back beams are of casting materials.

2. The transmission system is adopted of mechanical stepless reducer, double spiral speed reducer, as well as sleeve-type chain of automatic gear.

3. The movement of front beam and grinding spindles are adopted of lead screw driving, and dovetail slider are adopted for supporting and positioning.

4. Front-and-rear pressure pads are adopted of high-intensity plastic material.

5. Rack is made of steel pipes.

6. The conveying belt is of chain constructure.

7. PLC control, with HMI interface operation.

8. Electronics:

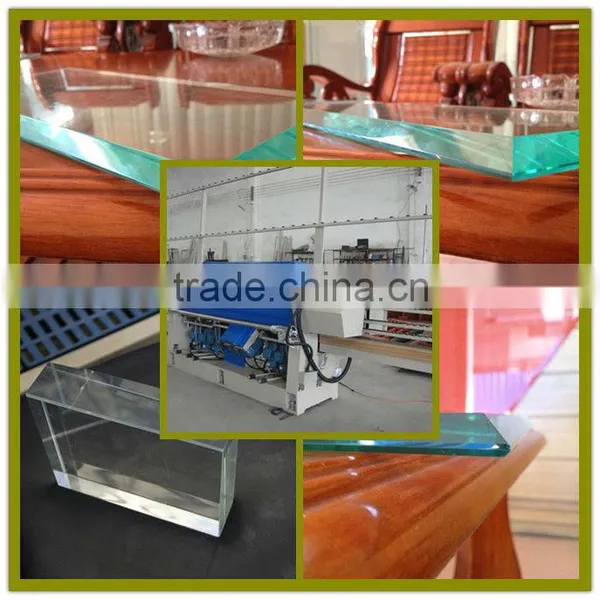

4. Glass product samples

1). 45 angle smaple

2).Straight angle sample
