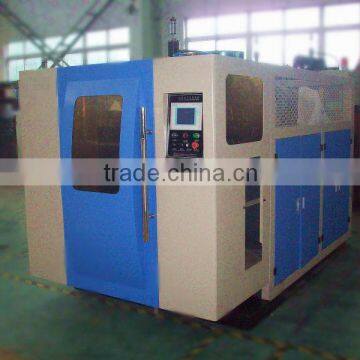

Automatic extrusion blow molding machine 1~8L

Main parts of Machine


Explanation

Oil Pump

Oil pump From Japan YUKEN  driving  the    machine

Computer control system (PLC)

Japanese Mitisubishi PLC

Used to control all electrial components and touch screen

Die head

Single die head

Stable and easy to maintenance

Auto deflashing unit

This device is able to remove the extra parts of products

Product after auto-deflashed

Perfect product

Save your manual

Cost.

Electric Cabinet

This part is the full electric components of the machine

electronic parts

Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA  PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWAN MEANWELL

Transducer

TAIDA FROM CHINA

hydraulic parts

Name

Trader

Oil pump

TAIWAN HIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE

air control system

Name

Trader

Cylinder

AIRTAC

Air Valve

FESTO

Max. Product volume

8 liters

Output capacity

120pcs/h

Screw diameter

75mm

Screw L/D ratio

24 L/D

Screw drive power

22 KW

Screw heating capacity

6 KW

No.of heating zone

4 zones

Output of HDPE

100KG/H

Oil pump drive power

11 KW

Clamping force

78KN

Max.size of mold

188-600mm

Mold stroke

400 X 450mm

Max.die diameter

180mm

Blowing pressure

0.6 mpa

Air Volume

0.7 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

60 L/MIN

Size of Machine

3.6x1.8x2.8m

Weight of machine

6.3 ton
