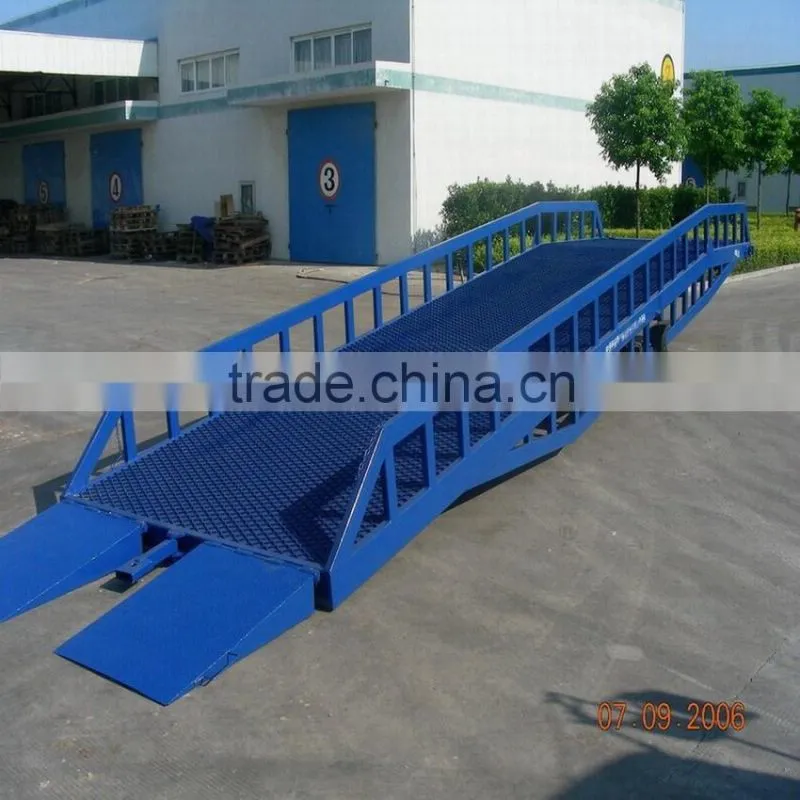

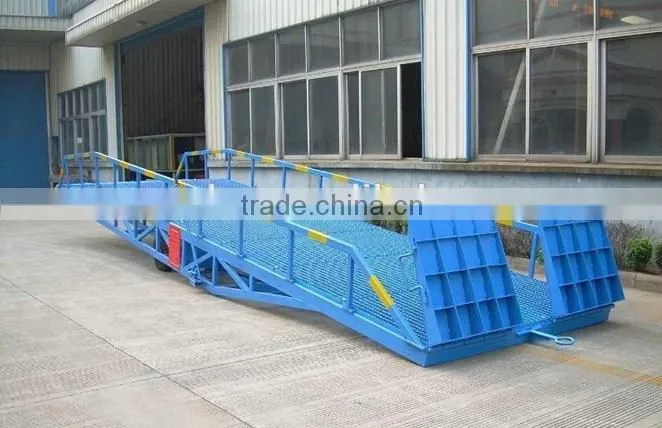

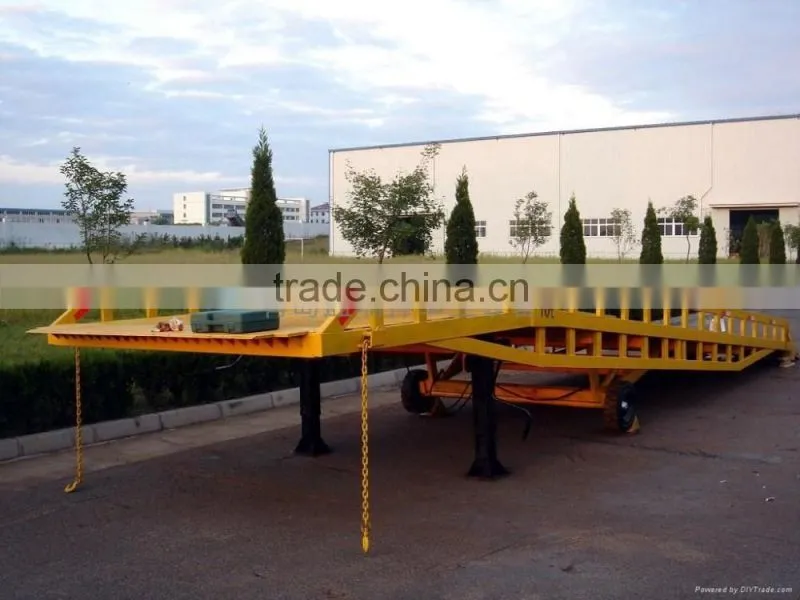

8ton loading dock ramp

Features:

1.Capacity:6ton,10ton,12ton,15ton

2.With hydraulic retractable legs .

3.With guard rails on both sides preventing forklift from falling off

4.With foldable lip for  free lateral floating

5.Italy  hydraulic pump

6.Conform to Europe EN1398 safety standards. We have CE certificate for this ramp

7.Towable by forklift

8.We have Catalogue, Video,Drawing,Operation Manual for this ramp.

Parameters:

1.Table length:2800mm

2.Slope floor length:8205mm

3.Lip length:400mm

4.Outer width(total width):2000mm

5.Inner width(for forklift to pass):1900mm

6.Adjustable height:1.2m-1.65m

7.Foldable plate length:803mm

Documentations and Certificates:

1.Detailed drawing listing dimensions for every part is available.

2.CE and ISO certificate are available.

3.Catalogue is available.

Warranty:

1.5 years warranty for steel structure and 1 year warranty for hydraulic and electrical

2.Some spare parts such as oil seal will be provided free of charge for containerload quantity(3pcs). Spare parts will be provided at a very reasonable price after the warranty period.

Packing and shipment:

1.We load 2pcs in one 40ft container for the maximum utilization of container .

2.Loading and unloading proposal will be provided to ease your unloading when goods arrived at your end.
