IC-7200 HF Transceiver (Original)

ESeller Global Limited
IC-7200 HF Transceiver (Original) thumbnail-1
IC-7200 HF Transceiver (Original) photo-1
US$ 935 - 935 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Original
Model Number:
IC-7200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Original
Model Number IC-7200
Type Vehicle Mouted
Dimensions 241x84x281mm
Frequency Range 0.030 - 60.000 MHz
Storage Channel 201
Talk Range 50km

IC-7200

HF/50MHz Transceiver





IC-7200 HF Transceiver (Original)



Product Description

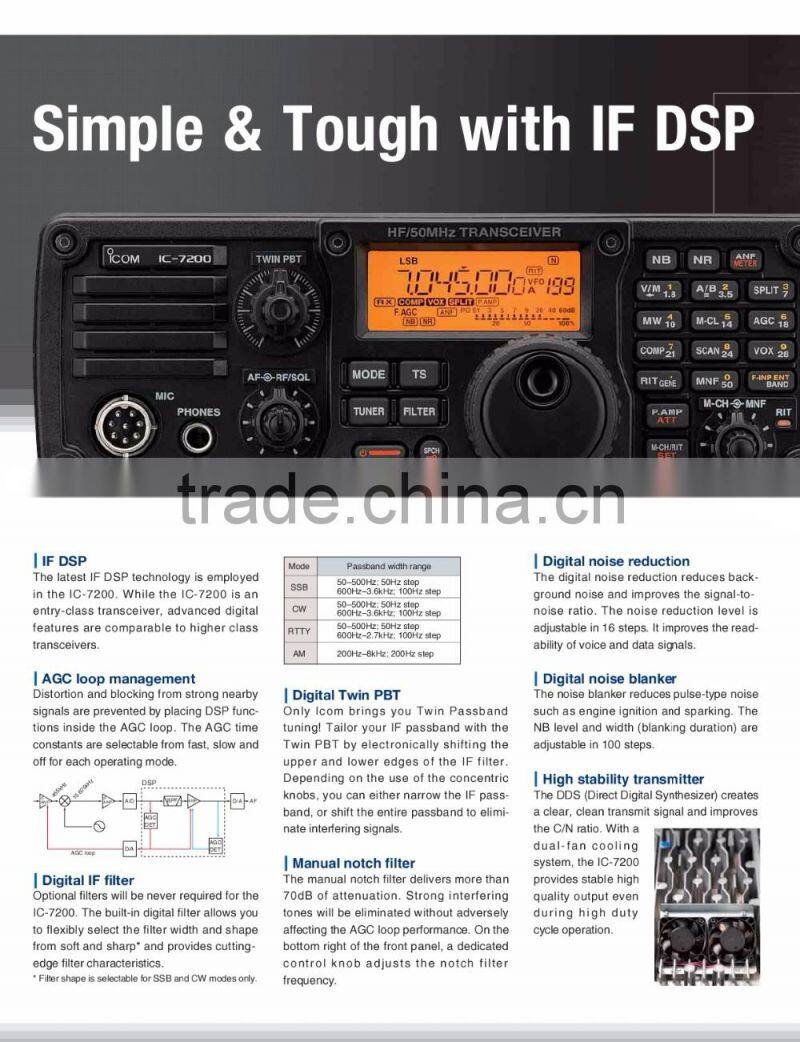

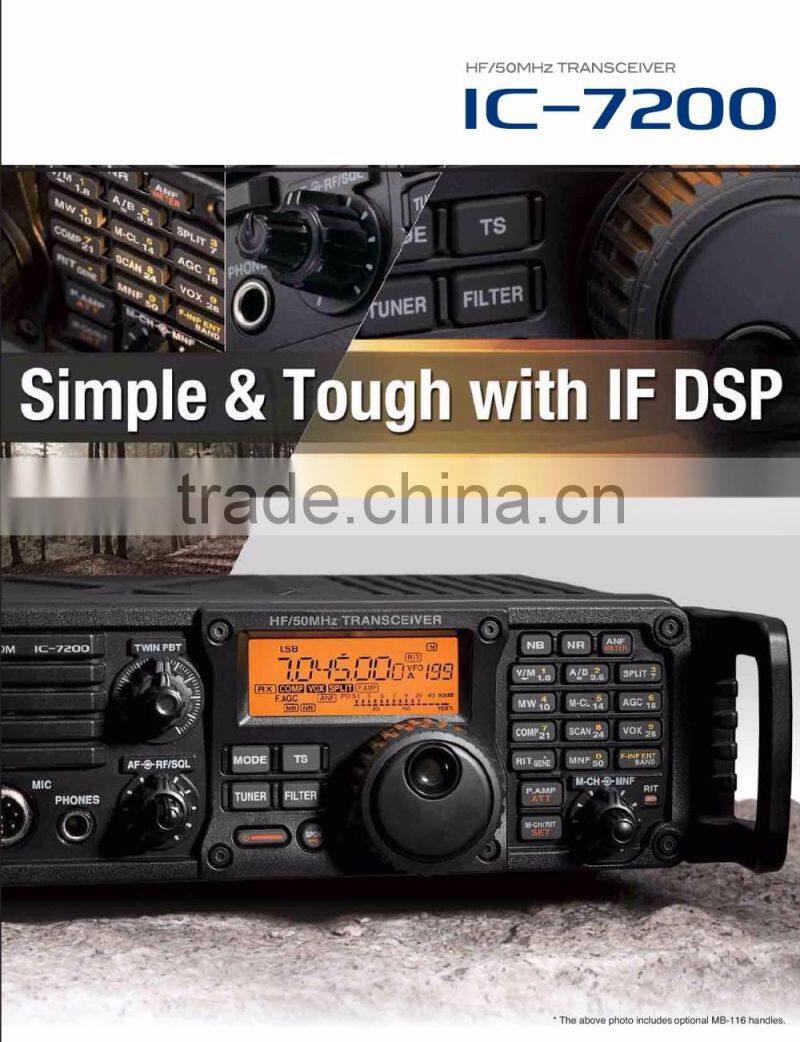

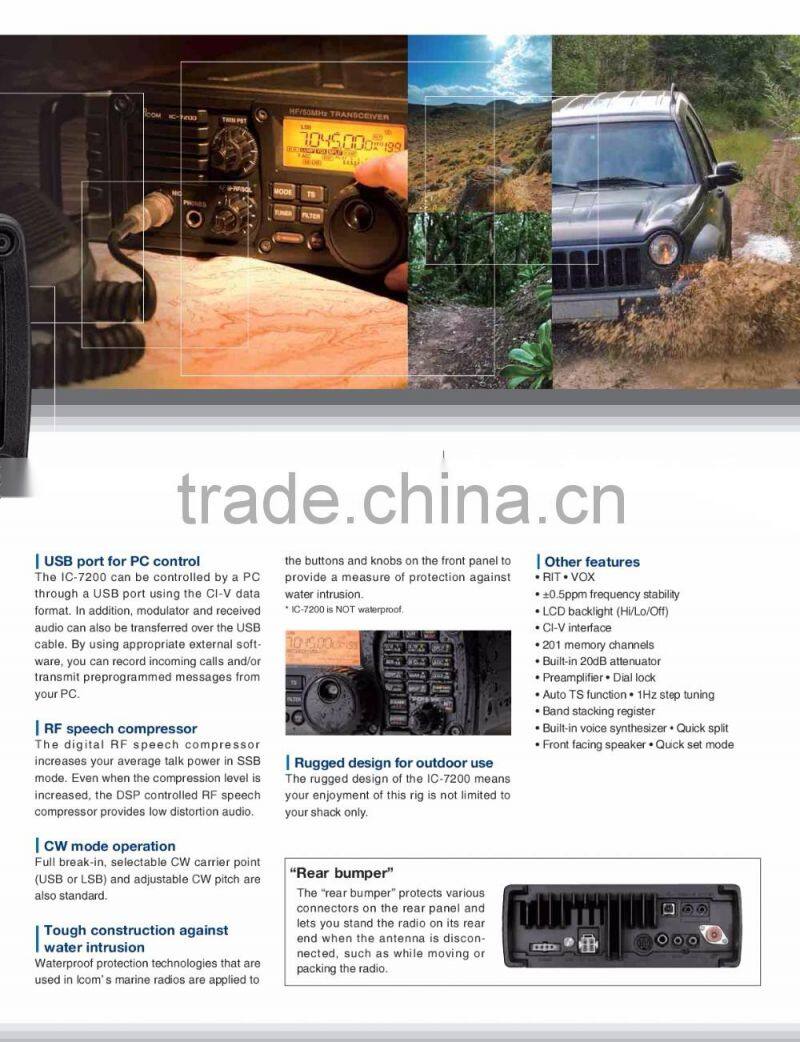

IC-7200 HF Transceiver (Original)IC-7200 HF Transceiver (Original)IC-7200 HF Transceiver (Original)





Specifications



General

Frequency coverage
U.S.A. Version
RX
TX



0.030– 60.000 MHz
1.800– 1.999 MHz
3.500– 3.999 MHz
5.3305, 5.3465, 5.3665, 5.3715, 5.4035 MHz
7.000– 7.300 MHz
10.100–10.150 MHz
14.000– 14.350 MHz
18.068–18.168 MHz
21.000– 21.450 MHz
24.890–24.990 MHz
28.000– 29.700 MHz
50.000–54.000 MHz

ModeUSB, LSB, CW, RTTY (FSK), AM
Number of channels201 Ch. (199 regular, 2 scan edges)
Antenna connectorSO-239 (50Ω)
Power supply requirement:13.8V DC ±15% (negative ground)
Operating Temperature range-10°C to +60°C; +14°F to +140°F
Frequency stability

Less than ±0.5ppm

Frequency resolution1Hz
Power consumptionTx Max. power: 22.0A
Max. audio: 2.0A
Rx Stand-by: 1.3A
Dimensions
(projections not included)		241 (W) × 84 (H) × 281 (D) mm;
9 1⁄2 x 3 5⁄16 x 11 1⁄16 in.
Weight (approx.)5.5kg; 12.1 lb

Transmitter

Output power
SSB, CW, RTTY
AM
2–100W
1-25W
Modulation system
SSB
AM
Digital PSN modulation
Digital low power modulation
Spurious emission
(unwanted emission)		Less than -50dB (HF bands)
Less than -63dB (50 MHz band)
Carrier suppressionMore than 50dB
Unwanted sidebandMore than 50dB
Microphone connector8-pin connector (600Ω)

Receiver

Receive systemTriple conversion super-heterodyne
Intermediate frequencies
64.455 MHz
455 MHz
15.625 kHz
Sensitivity (10dB S/N, Preamp ON, Filter shape sharp)
SSB, CW

AM
Less than 0.16µV (1.8-29.7 MHz)
Less than 0.13µV (50 MHz band)

Less than 13µV (0.5-1.799 MHz)
Less than 2µV (1.8-29.7 MHz)
Less than 1µV (50 MHz band)
Squelch sensitivity (Pre-amp: ON)
SSB, Threshold
Less than 5.6μV
Selectivity
SSB (BW: 2.4kHz sharp)

CW (BW: 500Hz sharp)

RTTY (BW: 350kHz)

AM (BW: 6kHz)

More than 2.4 kHz/–6dB
Less than 3.6 kHz/–60dB
More than 500 Hz/–6dB
Less than 900 Hz/–60dB
More than 360 Hz/–6dB
Less than 650 Hz/–60dB
More than 6.0 kHz/–6dB
Less than 15.0 kHz/–60dB
Spurious and image rejection ratioMore than 70dB (except 1/2 IF through on 50 MHz band)
Audio output power (at 13.8V DC)More than 2.0W at 10% distortion with an 8Ω load
RIT variable range±9.999 kHz
EXT SP connector2-connector 3.5 (d) mm (1⁄8″)/8Ω
