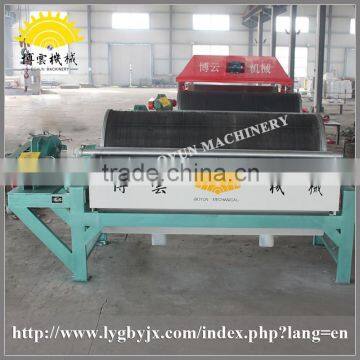

Industrial Wet Magnetic Ore AGM Separator For Sale Alibaba China Malaysia
The Scope of Application
It is widely used in mineral separation, coal washing and chemical sectors for wet classifying strong magnetic mineral of size 0-6mm, and the mineral are divided into two kinds of products: magnetic and non-magnetic material. The specific susceptibility of its separating strong magnetic minerals should be no less than 3000*10-6cm/g, which belongs to this type of minerals are magnetite, magnetic pyrite etc.
Technical Data Of Wet Magnetic Separator
Model Types | Size of Cylinder (diameter *length) mm | Magnetic Induction Intensity of the Surface mT | Processing Capacity | Motor Power KW | Cylinder Speed r/min | Machine Weight | Remarks | |||
Value of the geometric center pole | Scavenging average | The highest intensity of magnetic induction | T/h | M³/h | ||||||
CTS(N, B)-46 | 400x600 | -- | 130 | 240 | 1~3 | 5 | 1.1 | 45 | 600 |
|
CTS(N, B)-66 | 600x600 | -- | 145 | 240 | 1~10 | 16 | 1.1 | 40 | 750 | Permanent magnetism |
CTS(N, B)-69 | 600x900 | -- | 145 | 240 | 8~5 | 24 | 1.1 | 40 | 830 |
|
CTS(N, B)-612 | 600x1200 | -- | 145 | 240 | 10~20 | 32 | 2.2 | 40 | 990 |
|
CTS(N, B)-618 | 600x1800 | -- | 145 | 240 | 15~30 | 48 | 2.2 | 40 | 1330 |
|
CTS(N, B)-712 | 750x1200 | 120 | 155 | 240 | 15~30 | 48 | 3 | 35 | 1500 |
|
CTS(N, B)-718 | 750x1800 | 120 | 155 | 240 | 20~45 | 72 | 3 | 35 | 2100 | Permanent magnetism |
CTS(N, B)-918 | 900x1800 | 148 | 165 | 240 | 25~55 | 90 | 4 | 28 | 2900 |
|
CTS(N, B)-924 | 900x2400 | 148 | 165 | 240 | 35~70 | 110 | 4 | 28 | 3500 |
|
CTS(N, B)-1028 | 1050x1800 | 148 | 165 | 240 | 40~75 | 120 | 5.5 | 22 | 4000 |
|
CTS(N, B)-1021 | 1050x2100 | 148 | 165 | 240 | 45~88 | 140 | 5.5 | 22 | 4500 |
|
CTS(N, B)-1024 | 1050x2400 | 148 | 165 | 240 | 52~100 | 130 | 5.5 | 22 | 5000 | Left and right type |
CTS(N, B)-1030 | 1050x3000 | 160 | 240 | 240 | 65~125 | 200 | 7.5 | 22 | 6200 |
|
CTS(N, B)-1218 | 1200x1800 | 148 | 165 | 240 | 47~90 | 140 | 5.5 | 19 | 5800 |
|
CTS(N, B)-1224 | 1200x2400 | 148 | 165 | 240 | 82~120 | 192 | 7.5 | 19 | 6200 |
|
CTS(N, B)-1230 | 1200x3000 | 148 | 165 | 240 | 80~150 | 240 | 7.5 | 19 | 6200 |
|
CTS(N, B)-1530 | 1500x3000 | 180 | 240 | 240 | 90~170 | 270 | 11 | 14 | 8100 |
|
CTS(N, B)-1540 | 1500x4000 | 180 | 240 | 240 | 115~220 | 350 | 11 | 14 | 9300 |
|
Note: the technical parameters for reference only
General Structure
Three Types of Tank
The one cylinder can be equipped with three types of tank, namely downstream launder, countercurrent launder and semi-countercurrent launder.
Technological Process
Diagram of the Magnetic System
The magnetic system uses ferrite materials or is compounded with the rare earth magnet. The average magnetic induction of the magnetic surface is 100-600mT.
Installation In Customer's Factory
