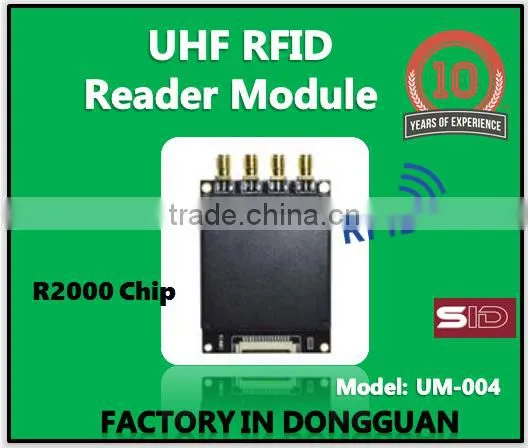

UM-004 UHF RFID 4 ports Read Embed Module R2000 Chip- SID -Global
-
Warehouse Pallet Tracking UHF RFID tag low cost UL-300- SID-Global
-
Weapons tracking UHF RFID MINI Tag UT-0505 5*5*3 MM SID-Global
-
Tools tracking UHF RFID MINI Tag UT-1035 10*3.5*1MM SID-Global
-
UHF RFID mini tag Special for tools inventory or anti theft-SID-Global
-
UHF RFID On metal Asset tracking tag semi round type- SID Global
Product Details
| Place of Origin: | Selangor, Malaysia | Brand Name: | SID-Global | Model Number: | RM-001 |
Product Description

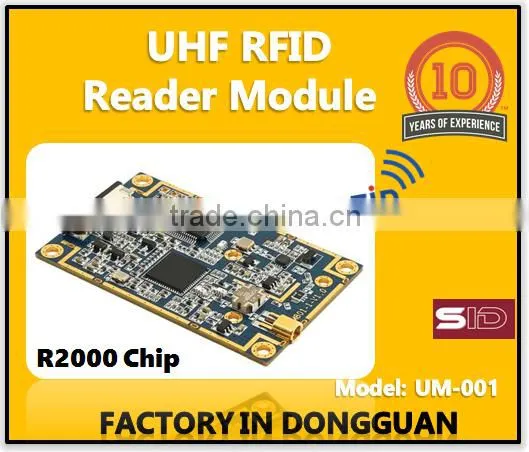

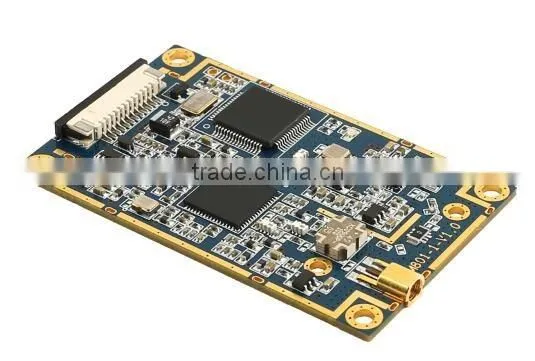

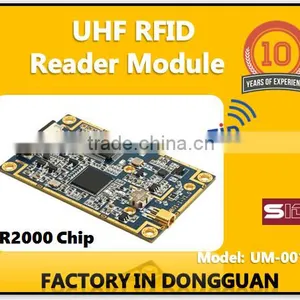

UM-001 UHF RFID 1 port R2000 reader Module - SID Global
Applications
- Ø OEM & ODM
- Ø Handheld and Mobile Devices
- Ø Kiosk
- Ø Sorting Machine
Features
- Ø Support ISO18000-6C EPC Gen2
- Ø Support stand-alone mode
- Ø UART interface
- Ø Read distance up to 20m
- Ø RF power control up to 30dBm
- Ø Small form factor
- Ø Impinj R2000 chip (UM – R2000 – 1)
Pin | Function |
1 | VCC 5V |
2 | VCC 5V |
3 | GND |
4 | GND |
5 | EN |
6 | GPIO1 |
7 | GPIO2 |
8 | GPIO3 |
9 | UART_RXD (TTL) |
10 | UART_TXD (TTL) |
11 | USB D+ |
12 | USB D- |
Model | UM –001 | |
Physical Characteristics | Dimensions | 57 (L)* 36 (W)* 3.0 (H) mm |
Weight | 25g | |
Environment | Operating Temp | -20°C to 55°C (-4°F to 131°F) |
Storage Temp | -40°C to 80°C (-40°F to 176°F) | |
Humidity | 10% to 95% | |
Antenna Connector | 1 MMCX 50ohm | |
Power | 3.7V – 5V | |
Frequency Ranges | 902 or 928 MHz band, 865MHz – 868MHz(Optional) | |
RF power control | 0 - 25dBm (UM – R500) / 0 – 30dBm (UM – R2000 – 1) | |
Tag Air Interfaces | EPC Class 1 Gen 2 | |
Communication Interface | TTL UART | |
Baud rate | 115200 bps (default) | |
Reader Range | >5cm - 20m tag and antenna dependent | |
