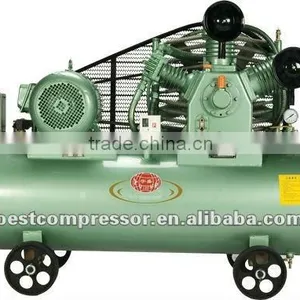

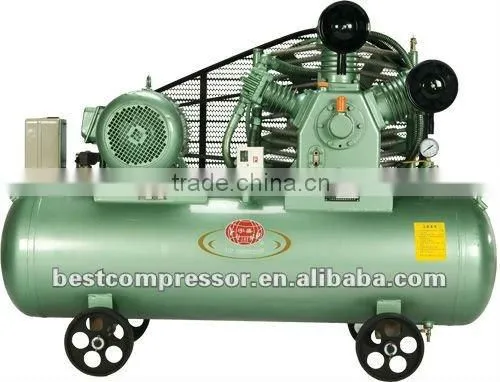

high pressure air compressor

Specifications

air -cooled high pressure air compressor
specially for PET bottle blowing
overload protection of power
lower fuel consumption

high pressure air compressor / high pressure compressor for PET bottle blowing





Key Points

1)Large air tank, applicable to PET bottle blowing.

2)Reliable(double) solenoid valve and self-discharge control system.

3)High-efficiency medium cooling system and low exhausting temperature;

4)Equipped with automatic draining water system of medium cooler (exclusive of 7.5KW);

5)With overload protection of the power; it can keep running for 24 hours continuously;

6)Cylinder mix design is optimized and appropriate, so as to ensure the balanced stress and

7)Low abrasion of each operation system;

8)Ultra-low rotate speed design, so that the operation is smooth and reliable, and the fuel consumption is low.

9)Air valve and spring (Sandvik materials) are imported from Sweden, so the service life thereof is long.



Technical Parameter



Model	Power(kW)	F.A.D(M3/min)	Discharge pressure (MPa)	Speed(r/min)	Tank Volume(L)	Weight(KG)	Dimension(L*W*H) mm
W-0.6/20	7.5	0.6	2.0	860	170	295	1460*530*1015
HT7020		0.7	2.0	780	200	315	1660*550*1070
W-0.6/25		0.6	2.5	860	170	295	1460*530*1015
HT7025		0.7	2.5	780	200	315	1660*550*1070
W-0.5/30		0.5	3.0	730	170	325	1460*530*1015
HT6030		0.6	3.0	680	200	350	1660*550*1070
HT10025	11	1.0	2.5	840	260	500	1720*630*1460
HT9030		0.9	3.0	780		535
HT8040		0.8	4.0	760	160	515	1630*730*1300
HT6060		0.6	6.0	660		545





We also have other types of air compressor too meet different requirements.
